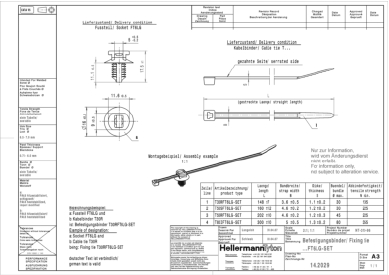

Fixing tie for hole (round), inside serrated, black, 5000pcs.
Art.-No. 150-00608 | T50RFT6LGSET-PA66HS/PA66HIRHS-BK |  Details

These fir tree fixings can also be used in threaded, blind holes.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Fir Tree
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Pack Content 5000pcs.
    Package Content packed in pcs.
    PART DESCRIPTION T50RFT6LGSET-PA66HS/PA66HIRHS-BK
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Variant Inside Serrated
    for Hole ∅ (FH) 6.5 - 7.0 mm
    for Panel Thickness min - max 0.8 - 6 mm
    Length (L) 202mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.75-6mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    Specifications
    GTIN-13 / EAN 4031026228051
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.15kg
    Packaging 3 - Height (m) 0.345m
    Packaging 3 - Length (m) 0.38m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0498m³
    Packaging 3 - Weight (kg) 12.12kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.258m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 90000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.208m³
    Packaging 4 - Weight (kg) 239.16kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
