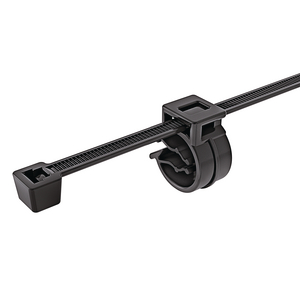

Fixing tie with pipe/tube holder, ⌀4.0-45.0mm, black, 500pcs.
Art.-No. 156-01247 | T50ROC1B-PA66HS/PA66HIRHS-BK |

Pipe Clip CBTO, twistable 90°.

For post-installation of additional cables for pre-assembled cable looms
Variety of twist angles and even different loop directions provide flexibility for cable routing
For OC1 and 2A additional cable tie dimensions are available
CBTO-series for cable ties up to 5 mm

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-piece fixing ties with pipe clip >

Base Data

Colour	Black (BK)
Fixation Method	Omega Clip
Identification Plate Position	none
Key product features	lockable, rotatable
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Min.Tensile Strength	225N
PART DESCRIPTION	T50ROC1B-PA66HS/PA66HIRHS-BK
Pack Content	500pcs.
Package Content packed in	carton
Product Family	for multiple routing
Product Group	2-piece fixing ties with pipe clip
Tie Closure	plastic pawl
Type	T50ROC1B

Product Dimensions

Attach to ⌀	4.0 - 10.0
Bundle ⌀ max.	45.0mm
Bundle ⌀ min.	4.0mm
Length (L)	202mm
Thickness (T)	1.2mm
Width (W)	4.6mm

Downloads

Specifications

Flammability	UL 94 HB
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026485874
