02/07/2025

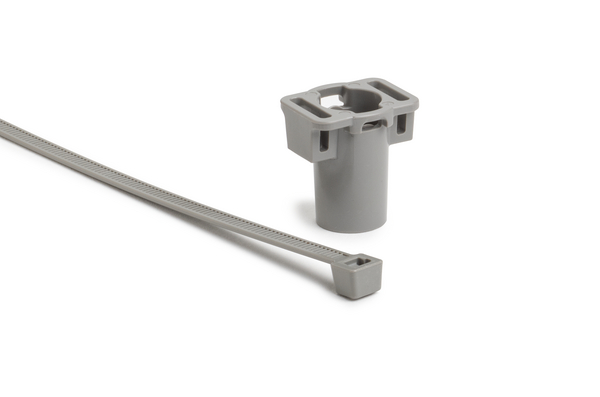

Fixing tie for stud, ⌀4.0-50.0mm, grey, 2000pcs.
Art.-No. 156-02983 | T50RSB8SET-PA46-GY |

Copied
Mount can be used in a wide variety of applications where 8mm weld studs or 8mm ISO bolts.

    • Design gives quick and easy assembly by hand without the need for tools.
    • Mount can be used with 8mm weld studs or 8mm ISO bolts.
    • Design provides low insertion force and high extraction force.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Unique, two-piece design allows routing to be above, parallel or perpendicular to stud. This also enables up to three separate bundles to be fastened to the same stud. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
    Cable Tie Polyamide 4.6 (PA46)
    Colour Grey (GY)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50RSB8SET-PA46-GY
    Pack Content 2000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RSB8SET
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 4.0mm
    Cable Tie Head Length (metric) 7.3mm
    Cable Tie Head Width (metric) 7.6mm
    Height (H) 25.0mm
    Length (L) 202.0mm
    Strap Width max. (G) 0.3"
    Stud ⌀ 0.315"
    Stud ⌀ 8.0 mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +125 °C, -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026640600
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    UNSPSC Key 39121703
