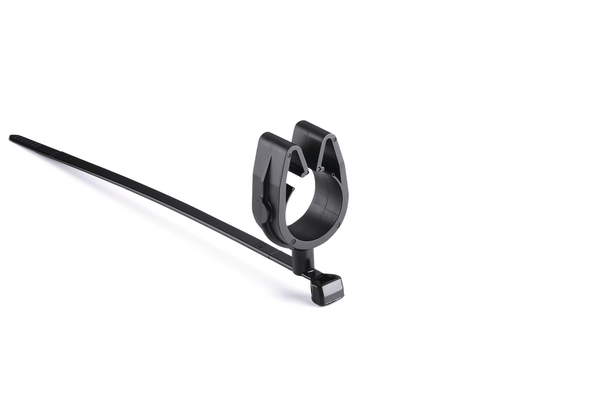

Fixing tie with pipe/tube holder, ⌀17.0-21.8mm, black, 1000pcs.
Art.-No. 156-01790 | T50SMVCMOC19M180-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ⌀ max 50.0mm
    Cable ⌀ min 2.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50SMVCMOC19M180-PA66HIRHSUV-BK
    Pack Content 1000pcs.
    Package Content packed in pack
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCMOC19M180
    UV-Stabilised Yes
    Bundle ⌀ max. 21.8mm
    Bundle ⌀ min. 17.0mm
    Bundle Diameter Nom. (ND) 19.0 mm
    Depth (D) 12.0mm
    Height (H) 44.6mm
    Length (L) 27.3mm
    Length (L2) 21.4mm
    Min.Tensile Strength 225N
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026587455
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 203.43kg
    Packaging 3 - Height (m) 0.216m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0521m³
    Packaging 3 - Width (m) 0.396875m
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
