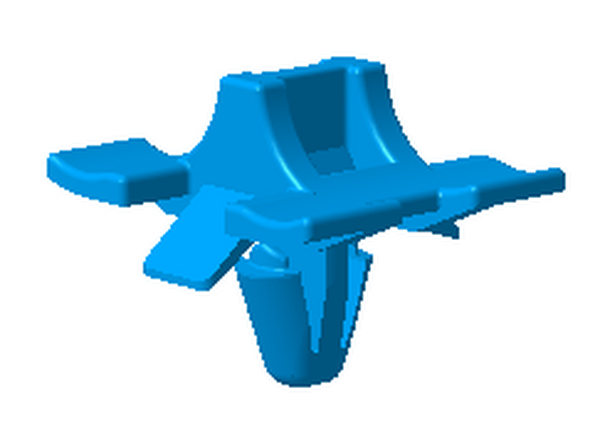

Fixing tie for hole (round), outside serrated, ⌀5.0-15.0mm, black, 500pcs.
Art.-No. 156-00133 | T50SOSDSFT6.5-PA66HS/PA66HIRHS-BK |

Copied
T50SOSDSFT6.5 for parallel routing.
T50SOSDSFT6.5
T50SOSDSFT6.5

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • DSFT-version for parallel rounting of two bundles
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50SOSDSFT6.5-PA66HS/PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Product Family 2-Piece Fixing Ties with Arrowhead, for parallel routing, for round holes
    Product Group 2-Pieces Fixing Ties with Arrowhead, for parallel routing
    Tie Closure plastic pawl
    Type T50SOSDSFT6.5
    Variant Outside Serrated
    Bundle ⌀ max. 15.0mm
    Bundle ⌀ min. 5.0mm
    Height (H2) 18.9mm
    Length (L) 150mm
    Panel Thickness max. 0.7 - 1.5mm
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    for Hole ⌀ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 1.5 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026263298
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.05123m³
    Packaging 1 - Weight (kg) 1.643597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 7.394388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 109.752kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Art.-No.: 156-00133 Contact
    Base Data Product Dimensions Specifications Logistics and Packaging Downloads
    Downloads Datasheet
