Fixing tie for stud, Ø1.0-35.0mm, black, 500pcs.
Art.-No. 157-00529 | T50SOSSBS5E-2-PA66HS-BK |  Details

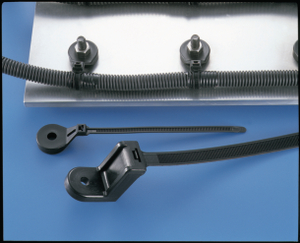

This outside serrated cable tie with weld stud mounting keeps the cables close to the fixing stud.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Mounting Screw Type M5 Screw
    Pack Content 500pcs.
    Package Content packed in bag
    PART DESCRIPTION T50SOSSBS5E-2-PA66HS-BK
    Product Family For cable routing alongside the stud
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ min. 1.0mm
    Max Stud Length 14.0mm
    Min Stud Length 8.0mm
    Min.Tensile Strength 225N
    Stud ∅ 5.0 mm
    Width (W) 4.7mm
    Specifications
    GTIN-13 / EAN 4031026660721
    UNSPSC Key 39121717
