Fixing tie with pipe/tube holder, Ø30.0mm, black, 500pcs.
Art.-No. 156-02662 | T50SOSSFT7ELOC10-14-PA66HS/PA66HIRHS-BK | Details

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-piece fixing ties with pipe clip >

Base Data

Application Tool	MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Fixation Method	Omega Clip
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Content	500pcs.
Package Content packed in	bag
PART DESCRIPTION	T50SOSSFT7ELOC10-14-PA66HS/PA66HIRHS-BK
Product Group	2-piece fixing ties with pipe clip

Product Dimensions

Attach to Ø	10.0-14.0mm
Bundle Diameter max (metric)	30.0mm
for Hole ∅ (FH)	6.8 - 7.2 mm
for Panel Thickness min - max	0.9 - 2 mm
Length (L)	175.0mm
Min.Tensile Strength	225N
Width (W)	4.7mm

Downloads

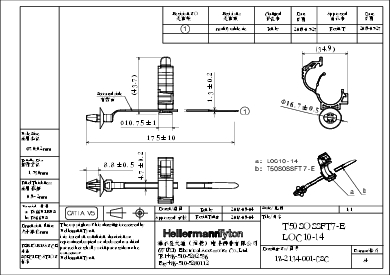

Technical drawing 18-2134-001-CSC

Download

Specifications

Operating Temperature	-40 °C to +105 °C
Specifications
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No

Logistics and Packaging

GTIN-13 / EAN

4031026619569

More Information

UNSPSC Key

39121702
