18/04/2024

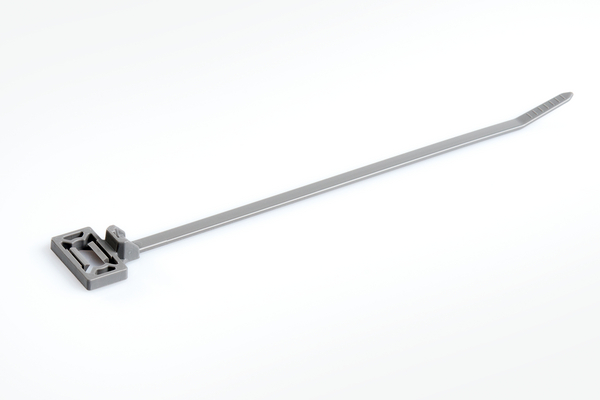

Fixing tie for stud, outside serrated, Ø1.0-35.0mm, grey, 500pcs.
Art.-No. 157-00385 | T50SOSWSP5E-PA46-GY |  Details

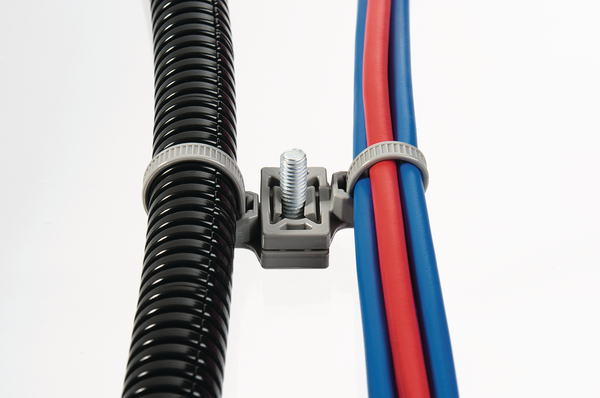

1-piece fixing tie for weld stud T5. The T50SOSWSP5E is stackable due to the design.

    • Cable tie head always situated in defined position
    • Easy to install without the need for a tool
    • Provides a 5 – 6 mm lateral adjustment possibility
    • Very low profile, stackable design
    • For bundles which need to be routed in different directions
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Grey (GY)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    Pack Content 500pcs.
    Package Content packed in bag
    PART DESCRIPTION T50SOSWSP5E-PA46-GY
    Product Family WSP-Serie
    Product Group 1-Piece Fixing Ties for Weld, moveable
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Variant Outside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ min. 1.0mm

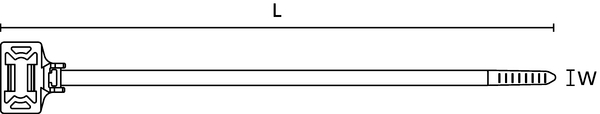

    Length (L) 163mm
    Min.Tensile Strength 200N
    Stud ∅ 5.0 mm
    Thickness (T) 1.35mm
    Width (W) 4.6mm
    Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    Specifications
    GTIN-13 / EAN 4031026609874
    UNSPSC Key 39121717
