20/04/2024

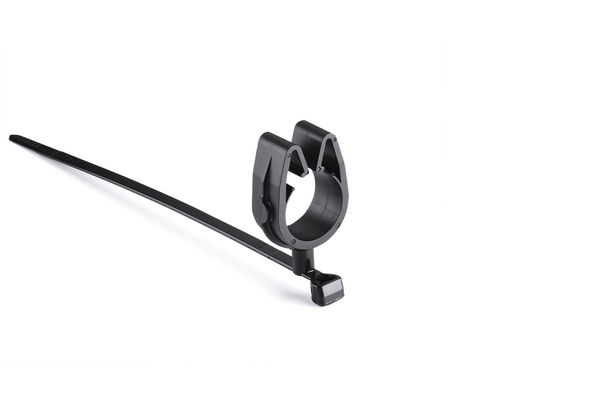

Fixing tie with pipe/tube holder, Ø17.0-21.8mm, black, 1000
Art.-No. 156-02258 | T50SVCMOC19M180-PA66HIRHSUV-BK |  Details

Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ∅ max 35.0mm
    Cable ∅ min 2.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Content 1000
    Package Content packed in carton
    PART DESCRIPTION T50SVCMOC19M180-PA66HIRHSUV-BK
    Product Group 2-piece fixing ties with pipe clip
    Bundle Diameter max (metric) 21.8mm
    Bundle Diameter Nom. (ND) 19.0 mm
    Bundle ∅ min. 17.0mm
    Depth (D) 12.0mm
    Height (H) 44.6mm
    Length (L) 27.3mm
    Length (L2) 21.4mm
    Min.Tensile Strength 225N
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026717876
    Packaging 1 - Weight (kg) 203.24kg
    Packaging 3 - Type box
    Packaging 3 - Weight (kg) 6.32kg
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
