Fixing tie for stud, ⌀3.5-50.0mm, black, 100pcs.
Art.-No. 157-00420 | T80ROSSB8U-PA66HIRHSUV-BK |

Copied
Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.

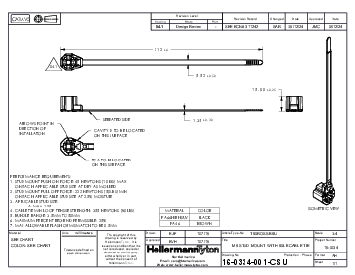

1-Piece Fixing Ties for Weld Studs, cloverleaf design. From left to right: 1. Standoff, 2. standard, 3. low profile head with standoff, 4. low profile head design.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 335N
    PART DESCRIPTION T80ROSSB8U-PA66HIRHSUV-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T80ROSSB8U
    UV-Stabilised Yes
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 3.5mm
    Height (H) 1.35mm
    Height (H2) 15.0mm
    Length (L) 212.0mm
    Stud ⌀ M8
    Width (W) 5.52mm
    CE Certification No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
