Cast resin, Polyurethane resin (PUR) black, 240ml
Art.-No. 435-01240 | Resin-771-SF_N-PUR-BK Details

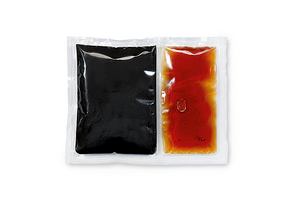

  • In a practical, transparent two-chamber pouch
  • Safe-Filling system (SF)
  • Excellent flow properties, low volume shrinkage
  • Cold curing and very hydrophobic
  • High hydrolytic stability and good curing at low temperatures
  • UV, ageing and weather resistant
  • Outstanding impact strength and resistance to moisture and atmospheric corrosion
  • Excellent adhesion to polymeric cables and wires made of PVC, XLPE, PE, EPR
  • SVHC-free, contains no hazardous substances, the cured product can be disposed of with house hold waste
  • Halogen free
Show more
Package size

Request your individual offer now

Application The RELICON PUR 771 cast resin has been created for the electrical insulation and mechanical protection of cable connections in low-voltage electrical networks. Also suitable as mechanical and moisture protection on medium-voltage cable connections. Application: For indoor and outdoor use.
Application Tool PTS4, ASS103, RCS0425
Colour Black (BK)
Density 1.37 g/cm³, 20 °C (DIN EN ISO 2811-2)
Material Polyurethane resin (PUR)
Pack Content 240ml
Package Content packed in bag
PART DESCRIPTION Resin-771-SF_N-PUR-BK
Pot Life 50 min. 5°C, 15 min. 23°C, 5 min. 23°C
Product Family RELICON PUR 771
Product Group Two-component polyurethane cast resin
Viscosity 4000 mPa*s, 5 °C (EN ISO 2555), 2000 mPa*s, 23 °C (EN ISO 2555)
Shore Hardness D 56±5
Dielectric Strength 20kV/mm
ELV compliant (Article 4 - 2) YES
Halogen-free Yes
Hazardous Goods No
Impact Strength 16 kJ/m²
Operating Temperature -25 °C to +130 °C
Shelf Life 36 months
Specifications
GTIN-13 / EAN 4031026628356
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.255m
Packaging 1 - Qty 1
Packaging 1 - Type pack
Packaging 1 - Volume (m³) 0.00147
Packaging 1 - Weight (kg) 0.433kg
Packaging 1 - Width (m) 0.165m
Packaging 3 - Height (m) 0.36m
Packaging 3 - Length (m) 0.375m
Packaging 3 - Qty 10
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0297
Packaging 3 - Weight (kg) 4.83kg
Packaging 3 - Width (m) 0.22m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 300
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 165.9kg
Packaging 4 - Width (m) 0.8m
Spray content 198g
Storage Temperature +4 °C to +40 °C
