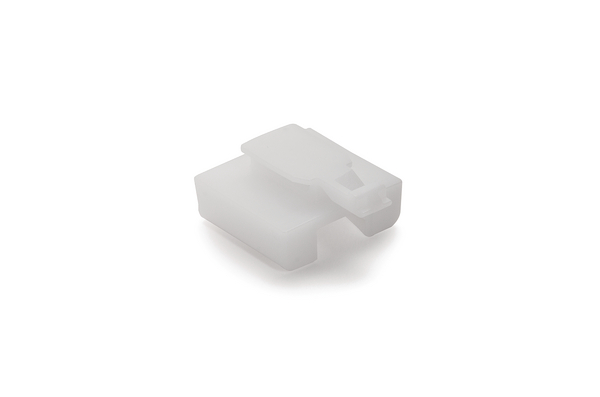

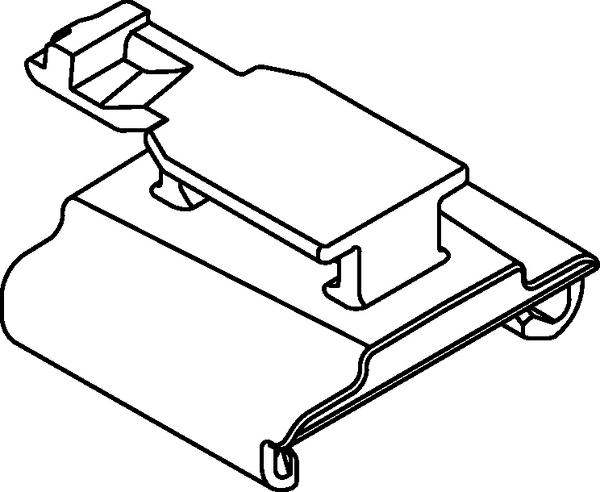

Connector clip for connector, natural, 4500pcs.
Art.-No. 151-02749 | 23MM11MMCCADPT-POM-NA |

Copied
Adapter to change from USCAR 23 mm clip to USCAR 11 mm Clip.

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Natural (NA)
    Material Polyacetal (POM)
    PART DESCRIPTION 23MM11MMCCADPT-POM-NA
    Pack Content 4500pcs.
    Package Content packed in bag
    Type 23MM11MMCCADPT
    Height (H) 12.26mm
    Length (L) 28.27mm
    Width (W) 24.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026731018
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 31162305
