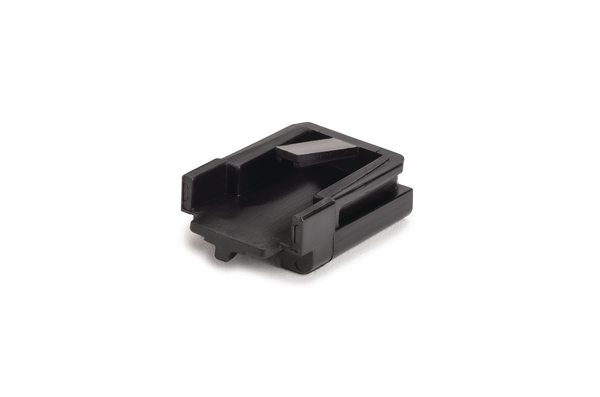

Connector clip for connector, black, 2000pcs.
Art.-No. 151-03448 | 23MM17MMCCADPT-PA66HIRHSUV-BK |

Copied
Adapter to change from USCAR 23 mm clip to USCAR 17 mm Clip.

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION 23MM17MMCCADPT-PA66HIRHSUV-BK
    Pack Content 2000pcs.
    Package Content packed in carton
    Type 23MM17MMCCADPT
    UV-Stabilised Yes
    Height (H) 13.2mm
    Length (L) 29.1mm
    Width (W) 20.5mm
    Width (W2) 0.68"
    Width (W2) 17.2mm
    CE Certification No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Recognized (US) No
    GTIN-13 / EAN 4031026663715
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Width (m) 0.31115m
    UNSPSC Key 31162305
