30/04/2025

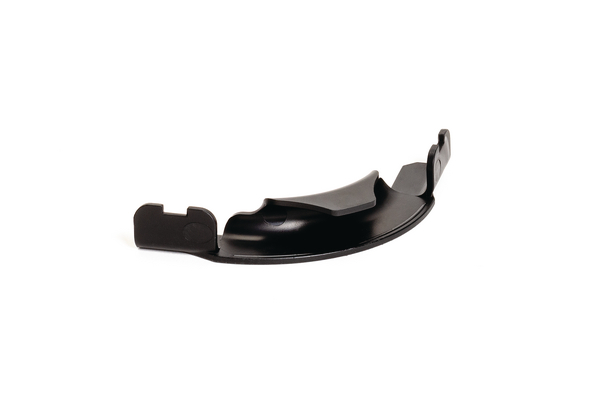

Mini cable channel, 90°, for hole (round), L=94.0mm, black, 300pcs.
Art.-No. 151-02418 | 90RA1-PA66HIRHSUV-BK |

U-Shape channel provides three sides of protection for wire or bundle.

Angled channel allows specific guidance around corners or obstructions
U-Shape channel provides three sides of protection for wire or bundle
Protects against abrasion and other environmental factors
Types made from PPT20 material convince with a high operating temperature

Add to watchlist

Request your individual offer now

Request quote

Base Data

Colour	Black (BK)
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	90RA1-PA66HIRHSUV-BK
Pack Content	300pcs.
Package Content packed in	carton
Product Family	Modular and interchangeable cable routing system
Product Group	Mini cable channel family
Type	90RA1

Product Dimensions

Angle	90
Height (H)	19.0mm
Length (L)	94.0mm
Length (L2)	94.0mm
Width (W)	132.0mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
UV-Stabilised	Yes

Logistics and Packaging

GTIN-13 / EAN	4031026725703
Packaging 3 - Height (m)	0.20954999999999998m
Packaging 3 - Length (m)	0.6048375m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0501m³
Packaging 3 - Width (m)	0.39528749999999997m

More Information

UNSPSC Key

39131600
