Bundling clip for stud, L=55.0mm, SO=22.8mm, black, 1000pcs.
Art.-No. 151-00017 | BC2212-PA66HIRHS-BK |

Copied
The slim line BC series is particularly compact and flexible.

    • Very flat bundling clip for 5.0 mm weld stud
    • Horizontal length tolerance compensation
    • Suitable for cables of reduced weight and diameter
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application The BC series is proving very popular in the automotive industry as a means of installing cable sets easily in various areas of the vehicle. Due to the flat and lightweight design they are a soloution provider at limited space areas.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BC2212-PA66HIRHS-BK
    Pack Content 1000pcs.
    Package Content packed in pack
    Product Family for distance routing
    Product Group Bundling clips for weld studs, lateral adjustment
    Type BC2212
    UV-Stabilised No
    Wings on clip base (Yes / No) NO
    ⌀ D 0.2"
    Bundling Bar Length 2.17"
    Bundling Bar Length 55.0mm
    Height (H) 1.5mm

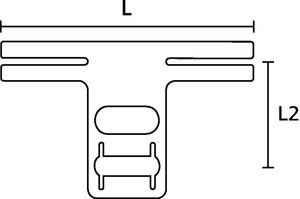

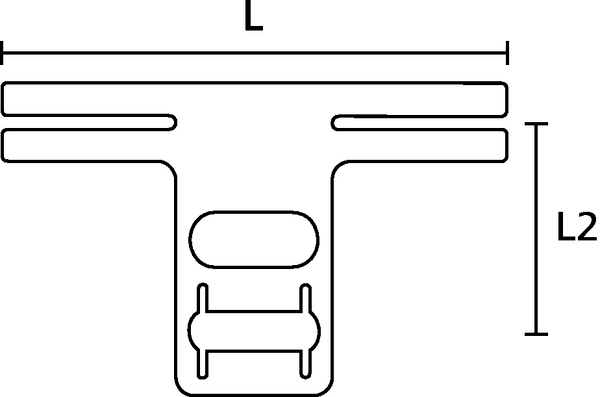

    Length (L) 55.0mm
    Length (L2) 22.0mm
    Max Stud Length 0.9"
    Max Stud Length 22.8mm
    Offset Length 22.8mm
    Stud ⌀ 0.20"
    Stud ⌀ 5.0 mm
    Width (W) 34.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026250229
    Packaging 1 - Height (m) 0.045m
    Packaging 1 - Length (m) 0.38m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.004446m³
    Packaging 1 - Weight (kg) 0.941815kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.03815kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 141.48kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
