10/09/2025

Connector clip, black, 10000pcs.
Art.-No. 151-03180 | CC32KHSFT6.5-PA66HIRHS-BK |

Copied

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC32KHSFT6.5-PA66HIRHS-BK
    Pack Content 10000pcs.
    Package Content packed in carton

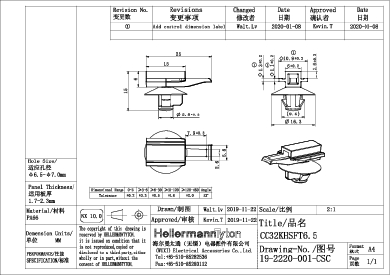

    Type CC32KHSFT6.5
    Height (H) 15.0mm
    Length (L) 25.0mm
    Panel Thickness max. 1.7 - 2.3mm
    Width (W) 16.3mm
    for Hole ⌀ (FH) 6.5 - 7.0 mm
    for Panel Thickness min - max 1.7 - 2.3 mm
    GTIN-13 / EAN 4031026642543
    UNSPSC Key 31162305
    Art.-No.: 151-03180 Contact
