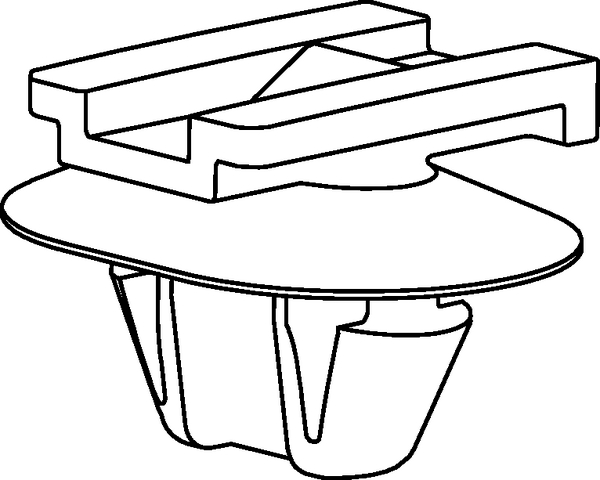

Connector clip, black, 1500pcs.
Art.-No. 151-02797 | CC6SFT7x12-PA66HIRHS-BK

Copied
  • Easy to install by simply pushing into place
  • Connection can be released (non-destructive)
  • One fit tree foot part can be used for a variety of panel thicknesses
  • Disc covers the hole to prevent dust and dirt gaining access

Request your individual offer now

Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CC6SFT7x12-PA66HIRHS-BK
Pack Content 1500pcs.
Package Content packed in bag
Type CC6SFT7x12
Height (H) 14.0mm
Length (L) 22.0mm
Panel Thickness max. 2.0-3.0mm
Width (W) 16.7mm
for Hole ⌀ (FH) 7.0 x 12.0 mm
for Panel Thickness min - max 2 - 3 mm
