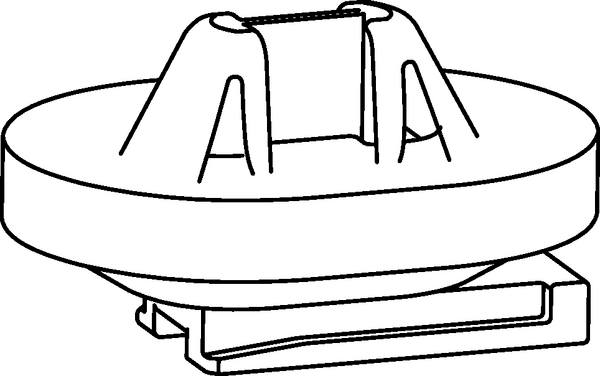

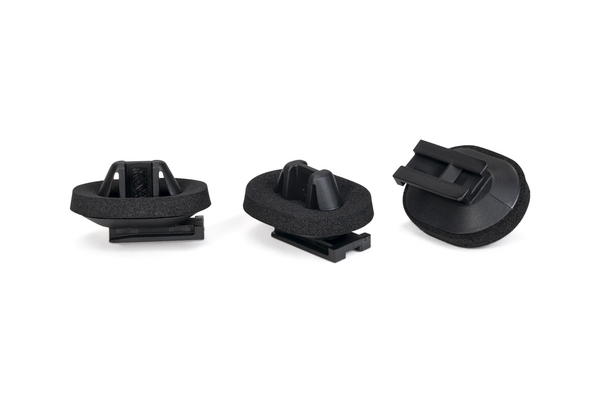

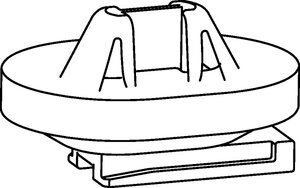

Connector clip, black, 5000pcs.
Art.-No. 151-02656 | CC9SFT7×12-MD-PA66HIRHS-BK |

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)

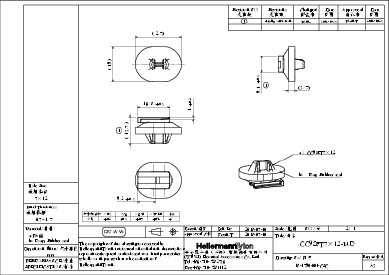

    PART DESCRIPTION CC9SFT7×12-MD-PA66HIRHS-BK
    Pack Content 5000pcs.
    Package Content packed in carton
    Type CC9SFT7×12-MD
    Height (H) 13.7mm
    Length (L) 25.0mm
    Width (W) 19.0mm
    for Hole ⌀ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 0.7 - 1.5 mm
    GTIN-13 / EAN 4031026616292
    UNSPSC Key 31162305
