Connector clip for hole (oval), black, 8000pcs.
Art.-No. 151-02654 | CCFTOVAL-Big-Slot-PA66HIRHS-BK

Copied
  • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
  • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
  • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.

Request your individual offer now

Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CCFTOVAL-Big-Slot-PA66HIRHS-BK
Pack Content 8000pcs.
Package Content packed in carton

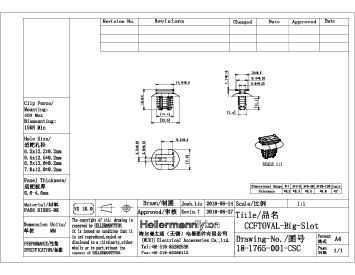

Type CCFTOVAL-Big-Slot
Height (H) 16.8mm
Length (L) 23.6mm
Width (W) 17.6mm
for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 4 mm
