Connector clip, EWCAP-005-7, black, 2000pcs.
Art.-No. 151-02802 | CCM10SO28R-PA66HIRHSUV-BK |

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Fixation Method Stud Mount
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CCM10SO28R-PA66HIRHSUV-BK
    Pack Content 2000pcs.
    Package Content packed in pack
    Type CCM10SO28R
    UV-Stabilised Yes

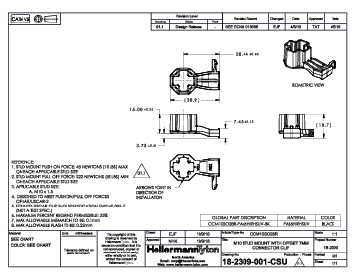

    Variant M10 Threaded Stud 28 mm Offset
    Height (H) 18.7mm
    Length (L) 38.9mm
    Offset Length 28.0mm
    Stud ⌀ 0.3937"
    Stud ⌀ M10
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026725796
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 7.47kg
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 31162305
