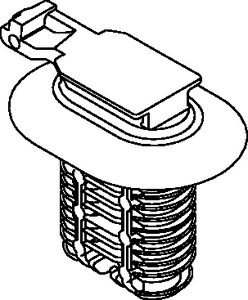

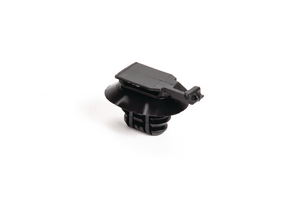

Connector clip for hole (oval), EWCAP-005-11, black, 1000pcs.
Art.-No. 151-01033 | CCOVAL6-PA66HIRHSUV-BK Details

Request your individual offer now

Colour Black (BK)
Fixation Method Fir Tree for oval holes
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION CCOVAL6-PA66HIRHSUV-BK
Pack Content 1000pcs.
Package Content packed in carton
Product Family With FirTree
Product Group Connector Clips for Oval Holes
Type CCOVAL6
Variant 6.2 x 12.2 mm 6.5 x 12.5 mm 6.5 x 13.0 mm 7.0 x 12.0 mm
Fixing Hole Shape Oval
Height (H) 15.2mm
Height (H2) 8.05mm
Length (L) 29.34mm
Panel Thickness 0.02 - 0.12"
Panel Thickness max. 0.6 - 3.0mm
Panel Thickness max. (imperial) 0.12"
Panel Thickness min. (imperial) 0.02"
Width (W) 17.6mm
for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 3 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026492032
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 1.030001kg
Packaging 3 - Height (m) 0.1397m
Packaging 3 - Length (m) 0.5127624999999999m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0223
Packaging 3 - Weight (kg) 4.94kg
Packaging 3 - Width (m) 0.31115m
Packaging 4 - Height (m) 1.264m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 160000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.213
Packaging 4 - Weight (kg) 204.2kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702
