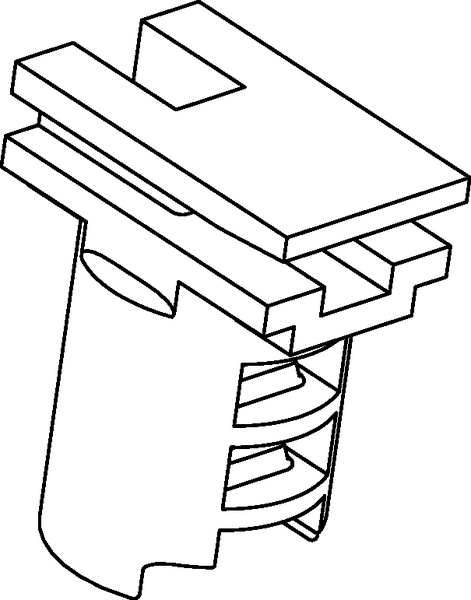

Connector clip, black, 10000pcs.


Art.-No. 151-02925

| CCSB5-PA66HIRHS-BK

 |

Copied

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Soft-push design for tool free installation
    Add to watchlist
    Request quote
    Downloads
    Application The Connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. The Connector Clips are related to a Connector and then secured to a surface depending on the requirement.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCSB5-PA66HIRHS-BK
    Pack Content 10000pcs.
    Package Content packed in bag
    Product Family Soft-push design
    Product Group Connector clips for weld studs
    Type CCSB5
    Stud ⌀ M5
    GTIN-13 / EAN 4031026623856
    UNSPSC Key 31162305
