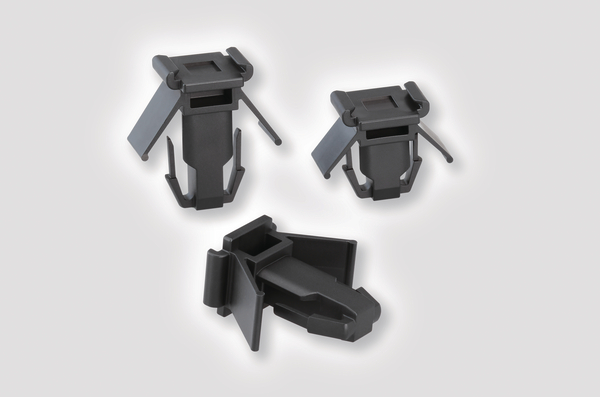

Connector clip, black, 100pcs.
Art.-No. 151-03215 | CCWPM712A-PA66HSW-BK |

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    PART DESCRIPTION CCWPM712A-PA66HSW-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family CCWPM712 for Oval Holes
    Product Group Connector Clip with Arrowhead
    Type CCWPM712A
    Height (H) 15.0mm
    Length (L) 19.1mm
    Panel Thickness max. 4.8mm
    Width (W) 23.5mm
    for Hole ⌀ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 1 - 4.8 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    GTIN-13 / EAN 4944387121797
    UNSPSC Key 31162305
