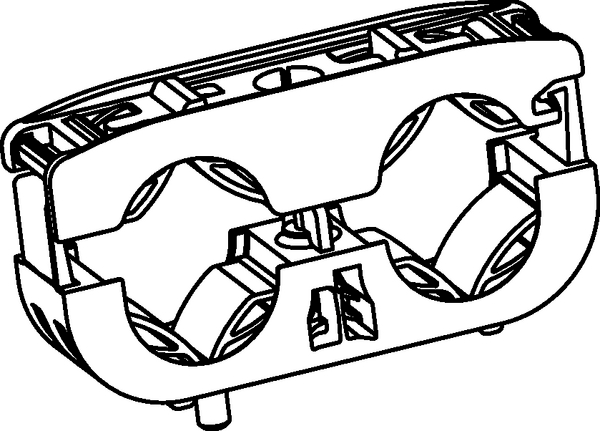

Cable clip for hole (round)/for stud, Dmin=20.0mm, Dmax=24.0mm, ⌀M5
Art.-No. 151-03332 | CHP2W20-24-PA46/AEM-OG |

Copied

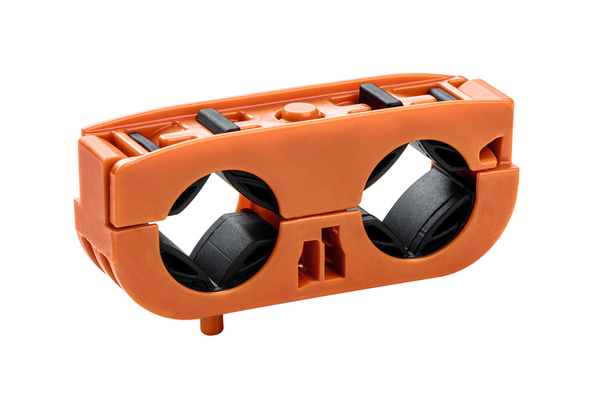

Double high voltage clip in PA46 / AEM with anti-rotation pin and Twist-Lock mechanism.

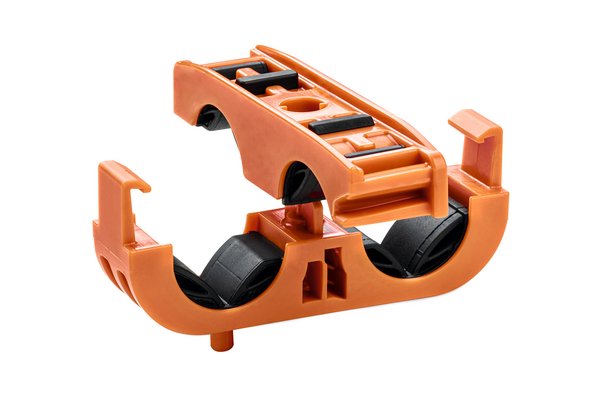

    • Easy installation thanks to the special closure
    • In PA46 for temperature from 40° to 150°C
    • For fixing on M5 studs with anti-rotation pin
    • Diameters from 20 mm to 24 mm
    • For 2 cables or parallel routing
    • The HV-Clips can also be manufactured with other material combinations or already available
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

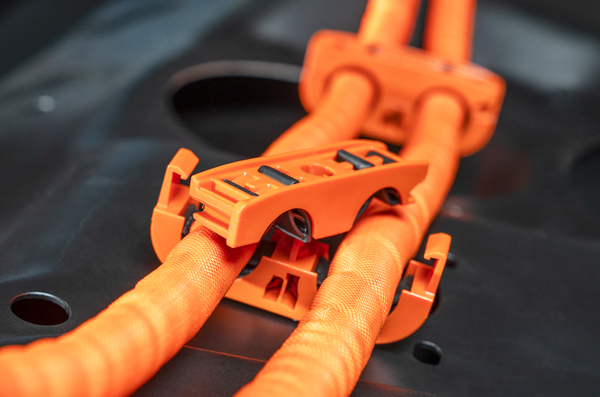

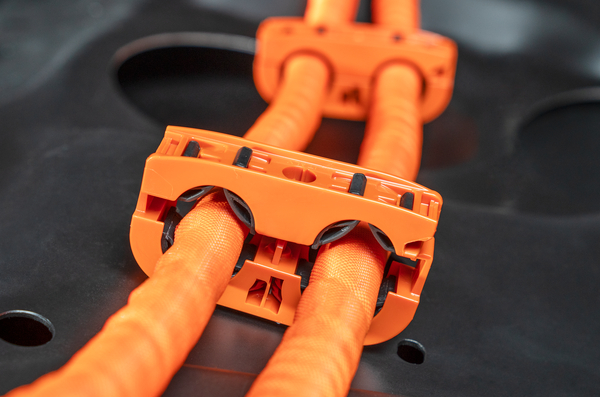

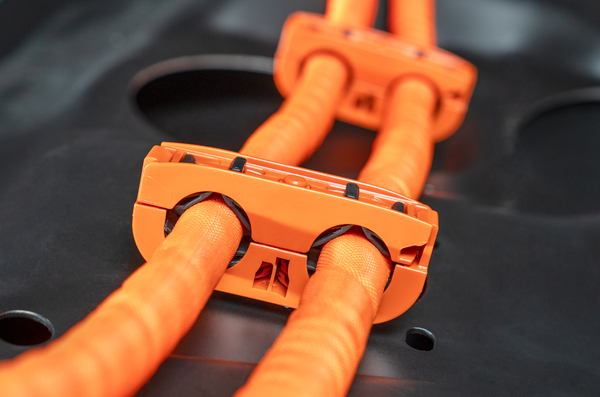

    Application These clips are used for the installation of high-voltage cables in the automotive industry or electric vehicles.
    The robust clip and soft insert protect and guide the cables stably and optimally even under strong vibrations, keeping the cables parallel.
    Colour Orange (OG)
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 4.6 (PA46), Ethylene acrylate copolymer (AEM)
    PART DESCRIPTION CHP2W20-24-PA46/AEM-OG
    Pack Content 200pcs.
    Package Content packed in box
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type CHP2W20-24
    Bundle ⌀ max. 24.0mm
    Bundle ⌀ min. 20.0mm
    Stud ⌀ M5
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026651682
    UNSPSC Key 39121705
