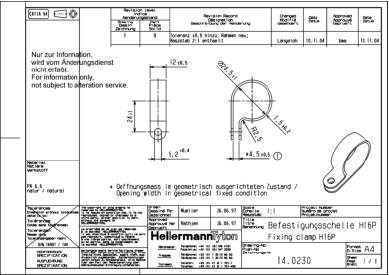

P-clamp closed, Dmax=28.5mm, ⌀5.2 mm, natural, 500pcs.
Art.-No. 211-60169
| H16P-PA66-NA
|
Copied
- Manufactured from Polyamide
- Good temperature resistance and high strength
- Wide range of sizes for every application
- Can be used without cable ties
Request quote
More products in this product group:
| Application | For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important. |
| Colour | Natural (NA) |
| Fixation Method | screw-hole |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | H16P-PA66-NA |
| Pack Content | 500pcs. |
| Package Content packed in | pcs. |
| Product Family | HP-Series |
| Product Group | Plastic P-Clamps |
| Type | H16P |
| UV-Stabilised | No |
| Variant | Closed |
| ELV compliant (Article 4 - 2) | Yes |
| EN 45545-2 Results | R22 HL1, R23 HL2 |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Nato number | 5340-12-173-0767 |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. |
| Specifications | EN 45545-2 |
|
|
|
| GTIN-13 / EAN | 4031026129549 |
| Packaging 1 - Height (m) | 0.085m |
| Packaging 1 - Length (m) | 0.535m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.013415125m³ |
| Packaging 1 - Weight (kg) | 1.1575kg |
| Packaging 1 - Width (m) | 0.295m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 5.383912kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 128.64kg |
| Packaging 4 - Width (m) | 0.8m |
