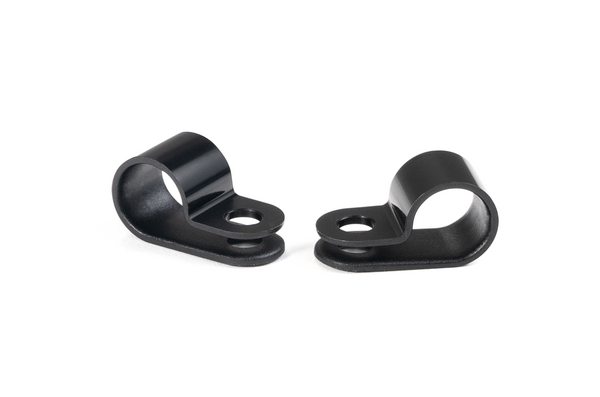

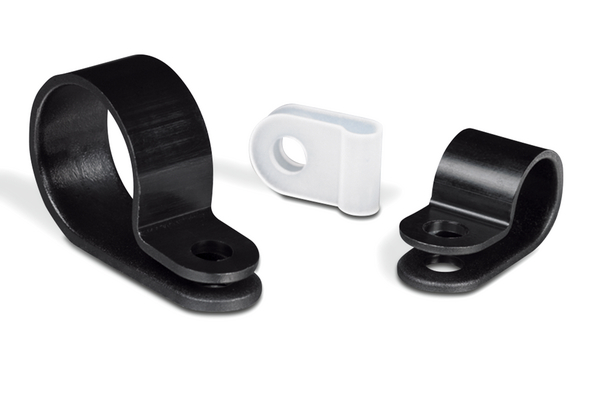

Plastic P-Clamps : H18P

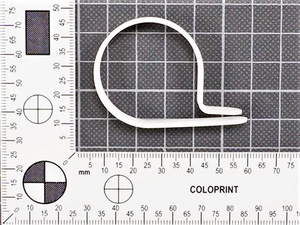

Plastic P-Clip PA66 natural 35 mm, Article number: 211-60189

Features

  • Manufactured from Polyamide
  • Good temperature resistance and high strength
  • Wide range of sizes for every application
  • Can be used without cable ties

Certifications & Approvals

Application

For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.

HP-Series is suitable for following markets and industries

Colour Natural (NA)
Fixation Method screw-hole
Pack Content 250pcs.
Package Quantity per pcs.
PART DESCRIPTION H18P-PA66-NA
Product Family HP-Series
Product Group Plastic P-Clamps
Variant Closed

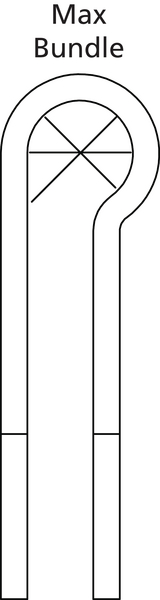

Bundle ∅ max. 35.0mm

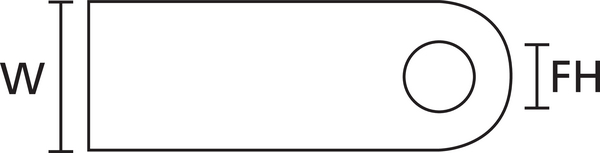

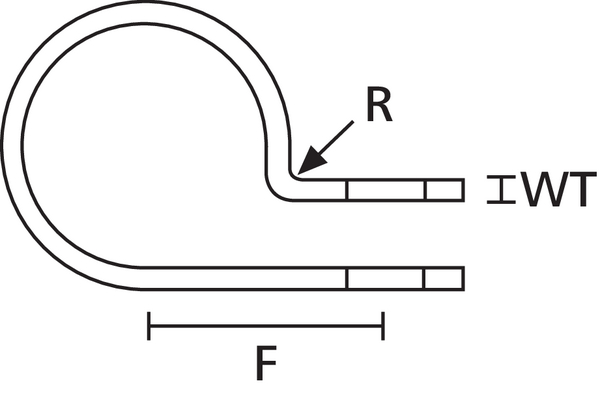

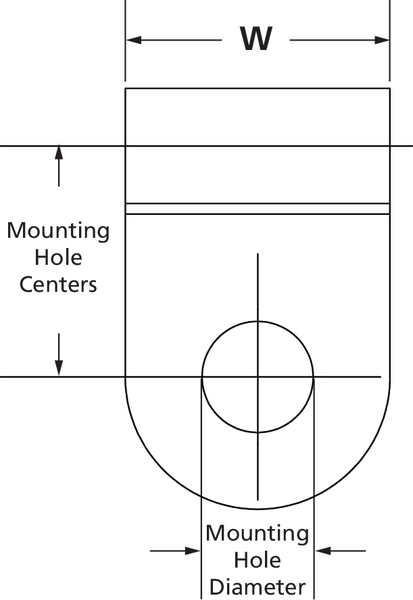

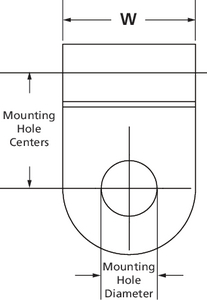

Fixing Hole Centres (F) 27.5mm
for Hole ∅ (FH) 5.2 mm
Nominal ∅ 35mm
Radius (R) 2.5mm
Wall (WT) 1.5mm
Width (W) 12.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Material PA66
Operating Temperature - °C -40 °C to +85 °C
Specifications
UV-Resistant (Yes/No) No
EAN / GTIN 4031026129563
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 250

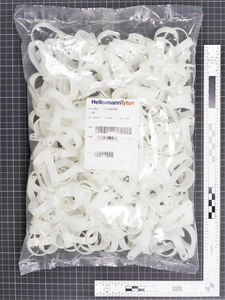

Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 0.727kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 1500
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 4.962kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 140.088kg
Packaging 4 - Width (m) 0.8m
Weight 0.725kg
