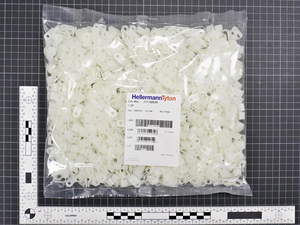

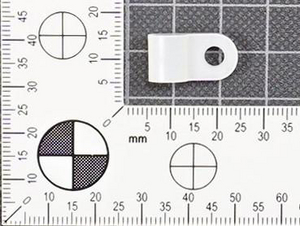

P-clamp closed, Ø4.2 mm, Dmax=6.5mm, natural, 1000pcs.
Art.-No. 211-60039 | H3P-PA66-NA Details

  • Manufactured from Polyamide
  • Good temperature resistance and high strength
  • Wide range of sizes for every application
  • Can be used without cable ties
Package size

Request your individual offer now

Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
Colour Natural (NA)
Fixation Method screw-hole
Material Polyamide 6.6 (PA66)
Pack Content 1000pcs.
Package Content packed in pcs.
PART DESCRIPTION H3P-PA66-NA
Product Family HP-Series
Product Group Plastic P-Clamps
Variant Closed
Bundle Diameter max (metric) 6.5mm
Fixing Hole Centres (F) 10.0mm
Fixing Hole Centres (F) 0.39"
for Hole ∅ (FH) 4.2 mm
Nominal ∅ 6.5mm
Nominal ∅ 0.25"
Radius (R) 1.0mm
Radius (R) 0.04"
Wall (WT) 1.0mm
Wall (WT) 0.039"
Width (W) 10.0mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
EN 45545-2 Results R22 HL2, R23 HL2
Flammability UL 94 V2
Hazardous Goods No
Nato number 5340-12-153-4373
Operating Temperature -40 °C to +85 °C
Specifications
Specifications EN 45545-2
UV-Stabilised No
GTIN-13 / EAN 4031026129396
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.285m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00252
Packaging 1 - Weight (kg) 0.389kg
Packaging 1 - Width (m) 0.295m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 8000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 3.847824kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 384000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 205.512kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702
