25/06/2024

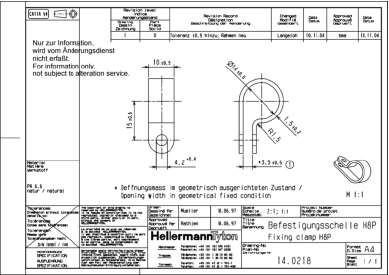

P-clamp closed, Ø4.2 mm, Dmax=14.0mm, natural, 1000pcs.
Art.-No. 211-60089 | H8P-PA66-NA Details

  • Manufactured from Polyamide
  • Good temperature resistance and high strength
  • Wide range of sizes for every application
  • Can be used without cable ties
Package size

Request your individual offer now

Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
Colour Natural (NA)
Fixation Method screw-hole
Material Polyamide 6.6 (PA66)
PART DESCRIPTION H8P-PA66-NA
Pack Content 1000pcs.
Package Content packed in pcs.
Product Family HP-Series
Product Group Plastic P-Clamps
Type H8P
Variant Closed
Bundle Diameter max (metric) 14.0mm
Fixing Hole Centres (F) 0.59"
Fixing Hole Centres (F) 15.0mm
Nominal ∅ 0.5"
Nominal ∅ 14.0mm
Radius (R) 1.5mm
Wall (WT) 0.059"
Wall (WT) 1.5mm
Width (W) 10.0mm
for Hole ∅ (FH) 4.2 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
EN 45545-2 Results R22 HL2, R23 HL2
Flammability UL 94 V2
Hazardous Goods No
Nato number 5340-12-158-4231
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications EN 45545-2
UV-Stabilised No
GTIN-13 / EAN 4031026129464
Packaging 1 - Height (m) 0.065m
Packaging 1 - Length (m) 0.42m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00792
Packaging 1 - Weight (kg) 1.08kg
Packaging 1 - Width (m) 0.29m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 6000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 7.570868kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 172.36kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702
