Fixing Elements for Tubes and Harnesses with Automatic Locking Feature, interconnectable : IAHC5BH

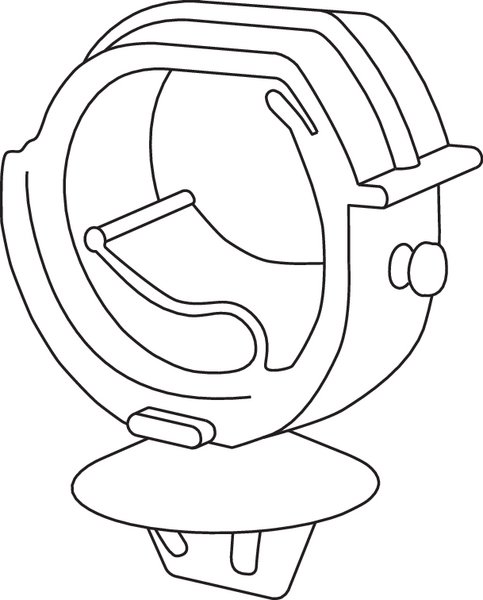

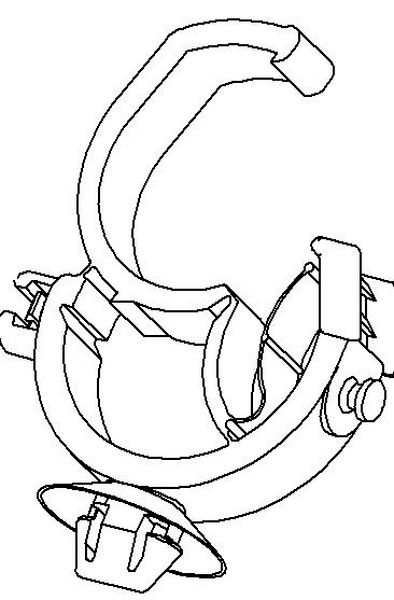

Fixing Element 57x13.5 mm, push and click, high impact modified, heat stabilised, black, Article number: 151-00384

Features

  • Push and click closure for fixing of wires
  • AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
  • Vibration resistant, rattlefree and secure hold of bundle
  • In case of maintenance easy replacement of bundle possible
  • 360 degree rotatable for guiding bundles in different directions

Certifications & Approvals

Application

Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.

Colour Black (BK)
Pack Content 500pcs.
Package Quantity per box
PART DESCRIPTION IAHC5BH-PA66HIRHS-BK
Product Family IAHC-Series
Product Group Fixing Elements for Tubes and Harnesses with Automatic Locking Feature, interconnectable
Attach to Ø 35.0 - 45.0 mm
Bundle ∅ max. 45.0mm
Bundle ∅ min. 35.0mm
Disc ∅ 24.0mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.7 - 3 mm

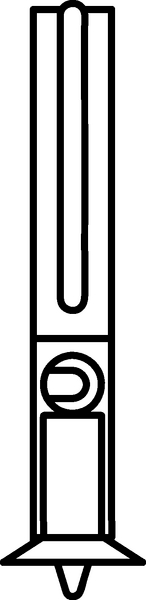

Length (L) 57.0mm
Length (L2) 7.0mm
Width (W) 13.5mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Material PA66HIRHS
Operating Temperature - °C -40 °C to +105 °C
Specifications
EAN / GTIN 4031026335254
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.595m
Packaging 3 - Qty 500
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0595
Packaging 3 - Weight (kg) 7.175kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 8000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 135.8kg
Packaging 4 - Width (m) 0.8m
