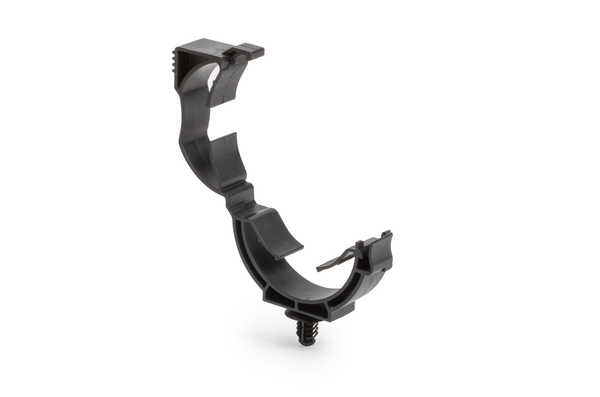

Cable clip, T=0.6 mm - 6.0mm, ⌀6.1 - 6.6 mm (hexagonal)/6.1 - 7.0 mm, Dmin=38mm, Dmax=43mm, nom⌀=38.0 - 43.0 mm

Art.-No. 151-03596

| LOC38-43FT6.5-PA66HIRHSUV-BK

|

For fixing and bundling convoluted tubes and pipes
Suitable for nearly every application

Add to watchlist

Request quote

Downloads

Base Data

Application	These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour	Black (BK)
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	LOC38-43FT6.5-PA66HIRHSUV-BK
Pack Content	300pcs.
Package Content packed in	carton
Type	LOC38-43FT6.5
UV-Stabilised	Yes

Product Dimensions

Bundle ⌀ max.	43mm
Bundle ⌀ min.	38mm
Bundle Diameter Nom. (ND)	38.0 - 43.0 mm
Depth (D)	15.0mm
Height (H)	103.18mm
Panel Thickness	0.02 - 0.23"
Panel Thickness	0.6 mm - 6.0mm
Width (W)	88.78mm
for Hole ⌀ (FH)	6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

GTIN-13 / EAN	4031026677248
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.5175m
Packaging 3 - Qty	300
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Weight (kg)	3.2kg
Packaging 3 - Width (m)	0.3175m
Packaging 4 - Qty	12000
