Cable clip with pipe/tube holder, Dmin=9.5mm, Dmax=11.5mm, nom⌀=10.0 mm, nom⌀2=26.0 mm

Art.-No. 156-02341

| MOC10FMOC26M-PA66HIRHSUV-BK

|

A rotatable dual routing clip that keeps two routings secured and separated.

Add to watchlist

Request quote

Base Data

Colour	Black (BK)
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
No. of bundles	2
PART DESCRIPTION	MOC10FMOC26M-PA66HIRHSUV-BK
Pack Content	1000pcs.
Package Content packed in	pack
Type	MOC10FMOC26M
UV-Stabilised	Yes
Variant	Clip to Clip

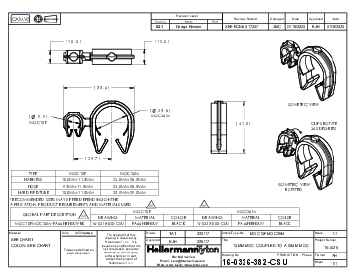

Product Dimensions

Bundle ⌀ 2 max.	29.0mm
Bundle ⌀ 2 min.	23.0mm
Bundle ⌀ max.	11.5mm
Bundle ⌀ min.	9.5mm
Bundle Diameter Nom. (ND)	10.0 mm
Bundle Diameter Nom. 2 (ND2)	26.0 mm
Depth (D)	12.0mm
Height (H)	41.0mm
Height (H2)	41.0mm
Length (L)	55.6mm
Length (L2)	29.7mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

GTIN-13 / EAN	4031026586106
Packaging 1 - Qty	1000
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	205.37kg
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Qty	1000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Width (m)	0.3984625m
Packaging 4 - Qty	30000

More Information

UNSPSC Key

39121702
