11/06/2025

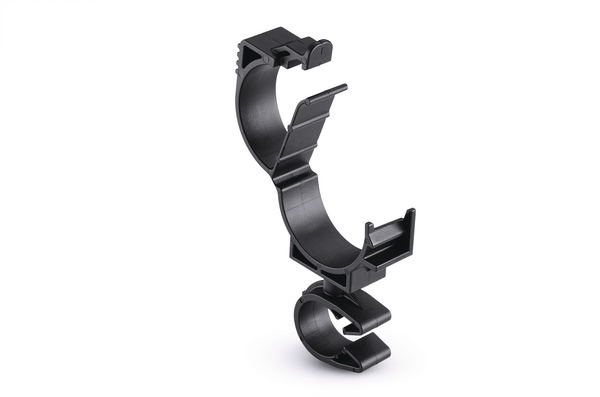

Cable clip with pipe/tube holder, Dmin=13.0mm, Dmax=15.8mm, nom⌀=14.0 mm, nom⌀2=20.0 mm - 25.0 mm
Art.-No. 156-01914 | MOC14FLOC20-25-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Key product features removable, for multiple routing, rotatable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC14FLOC20-25-PA66HIRHSUV-BK
    Pack Content 1000pcs.
    Package Content packed in pack
    Type MOC14FLOC20-25
    UV-Stabilised Yes
    Variant Clip to Clamp
    Attach to ⌀ 13.0 - 15.8, 20.0 - 25.0
    Bundle ⌀ 2 max. 25.0mm
    Bundle ⌀ 2 min. 20.0mm
    Bundle ⌀ max. 15.8mm
    Bundle ⌀ min. 13.0mm
    Bundle Diameter Nom. (ND) 14.0 mm
    Bundle Diameter Nom. 2 (ND2) 20.0 mm - 25.0 mm
    Depth (D) 12.0mm
    Height (H) 38.9mm
    Height (H2) 23.8mm
    Length (L) 59.00mm
    Length (L2) 32.9mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026715858
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 205.43kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 6.35kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Qty 30000
    UNSPSC Key 39121705
