02/05/2024

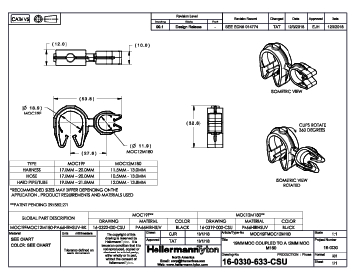

Cable clip with pipe/tube holder, Dmin=17.0mm, Dmax=21.8mm, nomØ=19.0 mm, nomØ2=12.0 mm, black, 2000
Art.-No. 156-02157 | MOC19FMOC12M180-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Content 2000
    Package Content packed in carton
    PART DESCRIPTION MOC19FMOC12M180-PA66HIRHSUV-BK
    Variant Clip to Clip Transverse
    Bundle Diameter max (metric) 21.8mm
    Bundle Diameter Nom. (ND) 19.0 mm
    Bundle Diameter Nom. 2 (ND2) 12.0 mm
    Bundle ∅ 2 max. 13.8mm
    Bundle ∅ 2 min. 10.5mm
    Bundle ∅ min. 17.0mm
    Depth (D) 12.0mm
    Height (H) 32.8mm
    Height (H2) 18.9mm
    Length (L) 53.82mm
    Length (L2) 27.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026716459
    Packaging 1 - Weight (kg) 204.39kg
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
