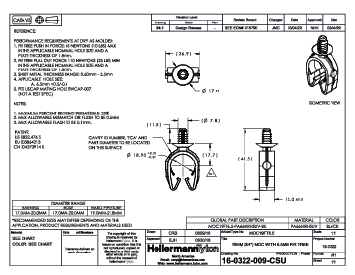

Cable clip for hole (round), T=0.6 - 5.5mm, ⌀6.1 - 6.9 mm/6.35 mm (hexagonal), Dmin=17.0mm, Dmax=21.8mm, nom⌀=19.0 mm


Art.-No. 151-01788

| MOC19FT6.5-PA66HIRHSUV-BK

 |

Copied
A rotatable dual routing clip that keeps two routings secured and separated.

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist
    Request quote
    Downloads
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC19FT6.5-PA66HIRHSUV-BK
    Pack Content 3000pcs.
    Package Content packed in pack
    Type MOC19FT6.5
    UV-Stabilised Yes
    Bundle ⌀ max. 21.8mm
    Bundle ⌀ min. 17.0mm
    Bundle Diameter Nom. (ND) 19.0 mm
    Depth (D) 12.0mm
    Fixing Hole Shape Circular
    Height (H) 48.5mm
    Length (L) 27.3mm
    Panel Thickness 0.02 - 0.22"
    Panel Thickness 0.6 - 5.5mm
    Panel Thickness max. (imperial) 0.22"
    Panel Thickness min. (imperial) 0.02"
    for Hole ⌀ (FH) 6.1 - 6.9 mm, 6.35 mm (hexagonal)
    for Panel Thickness min - max 0.6 - 5.5 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026572376
    Packaging 1 - Qty 3000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 203.33kg
    Packaging 3 - Height (m) 0.216m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0521m³
    Packaging 3 - Width (m) 0.396875m
    UNSPSC Key 39121702
