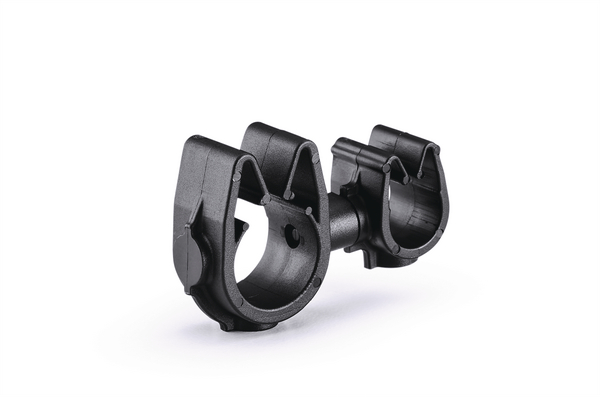

Cable clip with pipe/tube holder, Dmin=7.0mm, Dmax=9.0mm, nom⌀=8.0 mm, nom⌀2=12.0 mm

Art.-No. 156-01666

| MOC8FMOC12M-PA66HIRHSUV-BK

|

A rotatable dual routing clip that keeps two routings secured and separated.

Add to watchlist

Request quote

Base Data

Colour	Black (BK)
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
No. of bundles	2
PART DESCRIPTION	MOC8FMOC12M-PA66HIRHSUV-BK
Pack Content	2000
Package Content packed in	pack
Type	MOC8FMOC12M
UV-Stabilised	Yes
Variant	Clip to Clip

Product Dimensions

Bundle ⌀ 2 max.	13.8mm
Bundle ⌀ 2 min.	10.5mm
Bundle ⌀ max.	9.0mm
Bundle ⌀ min.	7.0mm
Bundle Diameter Nom. (ND)	8.0 mm
Bundle Diameter Nom. 2 (ND2)	12.0 mm
Depth (D)	10.0mm
Height (H)	22.1mm
Length (L)	37.2mm
Length (L2)	20.8mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

GTIN-13 / EAN	4031026574097
Packaging 1 - Qty	2000
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	202.15kg
Packaging 3 - Height (m)	0.20479m
Packaging 3 - Length (m)	0.5159375m
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0332m³
Packaging 3 - Weight (kg)	4.99kg
Packaging 3 - Width (m)	0.314325m
