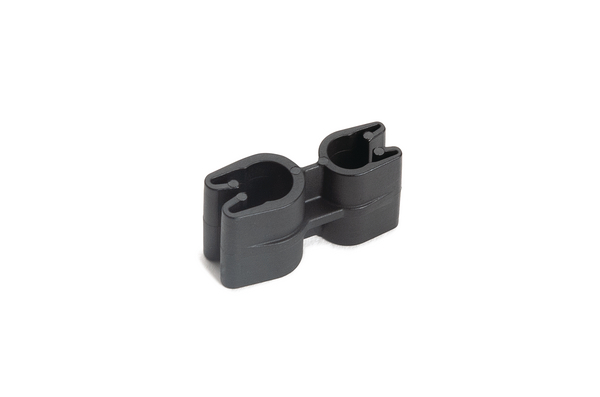

Cable clip, Dmin=4.0mm, Dmax=5.0mm, nom⌀=4.2 mm, nom⌀2=5.1 mm

Art.-No. 151-02451

| PC4X1-5X1-PA66HIRHSUV-BK

|

Dual pipe clip secures two routings together while keeping them separated, to prevent chafing or heat transfer.

Add to watchlist

Request quote

Downloads

Base Data

Colour	Black (BK)
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
No. of bundles	2
PART DESCRIPTION	PC4X1-5X1-PA66HIRHSUV-BK
Pack Content	10000pcs.
Package Content packed in	pack
Type	PC4X1-5X1
UV-Stabilised	Yes

Product Dimensions

⌀ (D2)	3.95mm
⌀ D	0.185"
⌀ D2	0.156"
Bundle ⌀ max.	5.0mm
Bundle ⌀ min.	5.0mm
Bundle Diameter Nom. (ND)	4.2 mm
Bundle Diameter Nom. 2 (ND2)	5.1 mm
Depth (D)	10.0mm
Diameter (D)	4.7mm
Height (H)	18.2mm
Length (L)	8.2mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

GTIN-13 / EAN	4031026715162
Packaging 1 - Qty	10000
Packaging 1 - Type	pack
Packaging 3 - Height (m)	0.1730375m
Packaging 3 - Length (m)	0.57785m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0349m³
Packaging 3 - Width (m)	0.34925m
