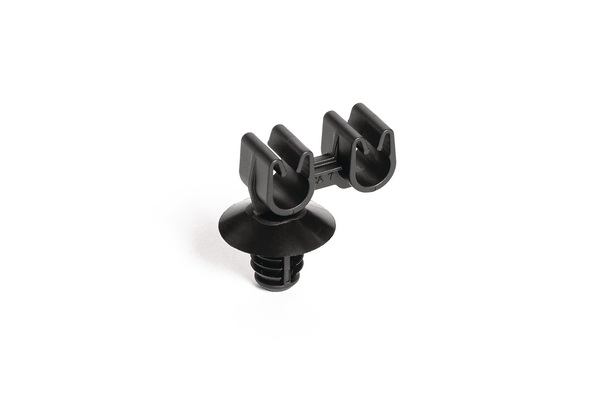

Cable clip, T=0.6 - 5.5mm, ⌀8.0 mm, Dmin=6.5mm, Dmax=7.0mm


Art.-No. 133-04043

| PC6.5x2FT8.0-PA66HIRHS-BK

 |

Copied
Secures two routings together while keeping them separated, to prevent chafing or heat transfer.

    • Secures two routings together while keeping them separated, to prevent chafing or heat transfer.
    • Inverted retaining legs and narrow opening prevent inadvertent disengagement.
    • Controlled flex and angled entry promote easy installation.
    • Robust arrowhead design provides low insertion effort yet delivers exceptional retention strength in an 8mm hole.
    Add to watchlist
    Request quote
    Downloads
    Colour Black (BK)
    Description This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses.
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION PC6.5x2FT8.0-PA66HIRHS-BK
    Pack Content 3000pcs.
    Package Content packed in pack
    Type PC6.5x2FT8.0
    UV-Stabilised No
    Bundle ⌀ max. 7.0mm
    Bundle ⌀ min. 6.5mm
    Height (H) 26.9mm
    Length (L) 29.6mm
    Panel Thickness 0.02 - 0.20"
    Panel Thickness 0.6 - 5.5mm
    Panel Thickness max. (imperial) 0.22"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 10.0mm
    for Hole ⌀ (FH) 8.0 mm
    for Panel Thickness min - max 0.6 - 5.5 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026715001
    Packaging 1 - Qty 3000
    Packaging 1 - Type pack
    Packaging 3 - Height (m) 0.1730375m
    Packaging 3 - Length (m) 0.57785m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0349m³
    Packaging 3 - Width (m) 0.34925m
    UNSPSC Key 31162305
