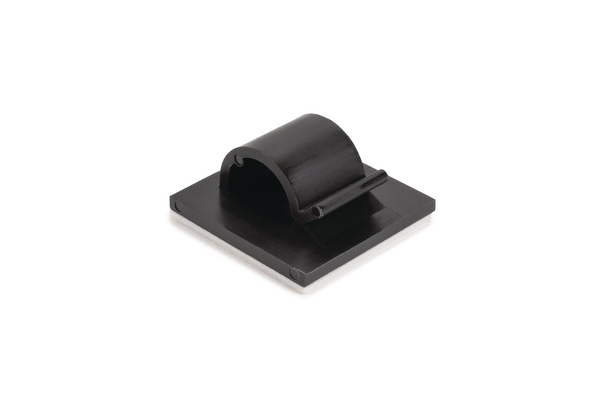

Cable clip for adhesive use/with pipe/tube holder, Dmax=8.0mm
Art.-No. 151-13601
| RB8-PA66-BK
|
Copied
- Flat design to use in applications with limited space
- One-piece self adhesive mount for quick and easy installation
- Can be used without cable ties offering process optimization
- Different sizes for various bundle diameters available
- Cost effective with easy application on smooth, clean surfaces
Request your individual offer now
Request quote
More products in this product group:
| Application | RB-Series self adhesive mounts offer greater routing freedom and also reduce the risk of corrosion compared to screw fixing mounts. They are ideally suited for tool-free installation and can be re-opened and reused easily when cables need to be replaced. These mounts can be used without the need for additional cable ties. Offering process optimization in a variety of applications. |
| Colour | Black (BK) |
| Fixation Method | Pasting / Stick |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | RB8-PA66-BK |
| Pack Content | 100pcs. |
| Package Content packed in | pack |
| Product Family | RB-Series |
| Product Group | Mounts with cable clip, self-adhesive |
| Type | RB8 |
| UV-Stabilised | No |
Download
| Adhesive | Synthetic rubber with base of polyethylene foam |
| Adhesive Operating Temperature | -40 °C to +60 °C |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +60 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| GTIN-13 / EAN | 5022660314827 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.001886m³ |
| Packaging 1 - Weight (kg) | 0.2296kg |
| Packaging 1 - Width (m) | 0.205m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Weight (kg) | 10.242kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 80000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 225.84kg |
| Packaging 4 - Width (m) | 0.8m |
