Ratchet O-Clamp
Art.-No. 151-04385 | ROC18.5-22.5NXT -PA66HIRHSUV/SS-BK |

Copied

    • Compact size for mounting in tight spaces
    • Fine-pitch ratchet provides controlled grip for a range of bundle sizes with a single part
    • Fully enclosed clamp prevents crushing and fallout
    • Release latch opens with a simple twist of a screwdriver
    • Nextracker-specific stainless steel mounting hanger designed for severe weather and single-axis tracker movement
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Ratchet O-Clamp for Nextracker attaches easily to Nextracker torque tubes. It offers one-handed, toolless simplicity and size versatility for managing wires and cables on solar modules. The robust design and solar-optimised materials make it ideal for heavy-duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes of single-diameter fasteners.
    Colour Black (BK)
    Fixation Method Mounting Hanger
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Stainless Steel (SS)
    Min.Tensile Strength 445N
    PART DESCRIPTION ROC18.5-22.5NXT -PA66HIRHSUV/SS-BK
    Pack Content 200pcs.
    Package Content packed in carton
    Product Family ROC Nextt Series
    Product Group Ratchet O-Clamp
    Type ROC18.5-22.5NXT
    UV-Stabilised Yes
    Bundle ⌀ max. 22.5mm
    Bundle ⌀ min. 18.5mm
    Height (H) 83.7mm
    Height (H2) 35.1mm
    Length (L) 58.1mm
    Length (L2) 37.0mm

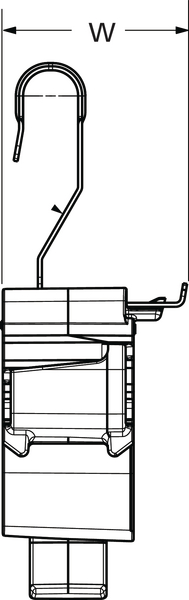

    Width (W) 28.9mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026756448
    Packaging 1 - Qty 200
    Packaging 1 - Type carton
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Qty 200
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Width (m) 0.31115m
    UNSPSC Key 39121702
