19/06/2024

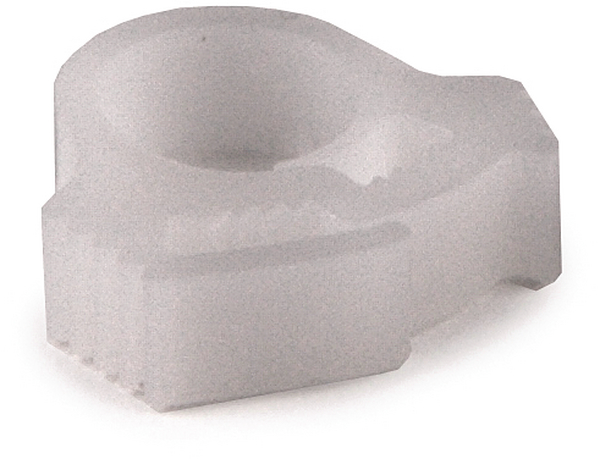

Plastic hose clamp, Ø6.0-6.7mm, white, 1000pcs.
Art.-No. 190-00023 | SNP1-POM-WH Details

  • Releasable and reusable plastic hose clamps
  • Self-locking
  • Releasable by giving a lateral movement to the 'head'
  • Installation by hand possible
  • Installation with processing tool for a secure tensioning
  • For higher operating temperatures: Glass Filled PA66
Show more
Package size

Request your individual offer now

Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Application Tool MSNP1-70, ASNP2-22, ASNP24-70
Colour White (WH)
Fixation Method Plug-in mounting
Material Polyacetal (POM)
PART DESCRIPTION SNP1-POM-WH
Pack Content 1000pcs.
Package Content packed in bag
Product Family SNP-Series
Product Group Snapper hose clips for tubes and harnesses
Type SNP1
Variant Closed
Bundle Diameter max (metric) 6.7mm
Bundle ∅ min. 6.0mm
Wall (WT) .04"
Wall (WT) 1.0mm
Width (W) max. 0.462"
Width (W) max. 11.73mm
Width (W) min. 8.33mm
Width (W) min. 0.328"
Width (W2) 0.148"
Width (W2) 3.76mm
∅ D max. 6.71mm
∅ D max. 0.264"
∅ D min. 6.02mm
∅ D min. 0.237"
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +90 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
GTIN-13 / EAN 4031026422510
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Width (m) 0.3175m
UNSPSC Key 39121702

Request your individual offer now
