28/04/2024

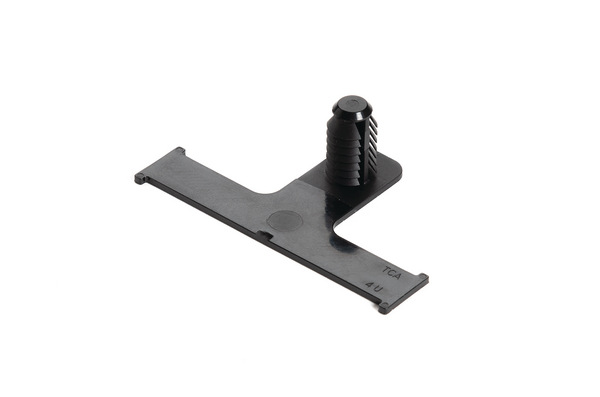

Bundling clip for hole (round), L=60.0mm, SO=25.3mm, black, 5000pcs.
Art.-No. 151-02457 | SOBC25FT8-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Content 5000pcs.
    Package Content packed in bag
    PART DESCRIPTION SOBC25FT8-PA66HIRHSUV-BK
    Bundling Bar Length 60.0mm
    for Hole ∅ (FH) 7.6 - 8.4 mm, M10 x 1.5
    for Panel Thickness min - max 0.6 - 5.8 mm
    Height (H) 17.9mm
    Length (L) 60.0mm
    Offset Length 25.3mm
    Panel Thickness 0.02 - 0.23"
    Panel Thickness max. 0.6 - 5.75mm
    Panel Thickness max. (imperial) 0.23"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 35.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026715056
    Packaging 3 - Height (m) 0.352m
    Packaging 3 - Length (m) 0.572m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Weight (kg) 9.9kg
    Packaging 3 - Width (m) 0.349m
    Packaging 4 - Qty 90000
    UNSPSC Key 39121702
