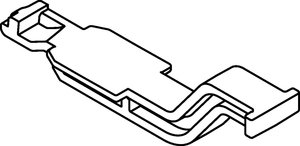

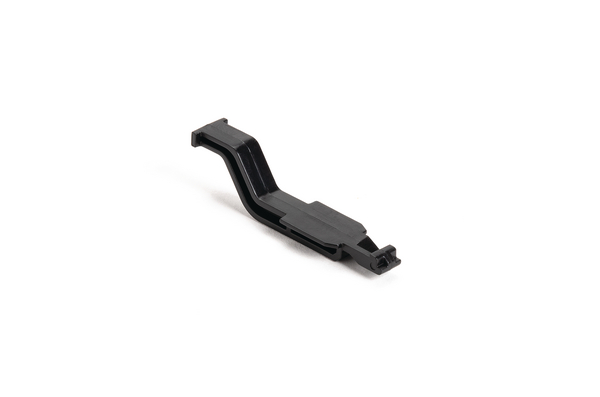

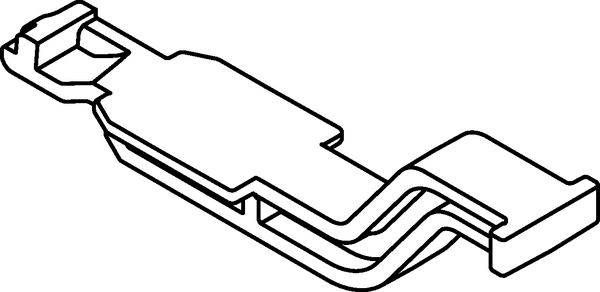

Connector clip for connector, black, 5000pcs.
Art.-No. 151-02551
| SOC25SO9CC11-POM-BK
|
Copied
- Connector Clip with tape bar secures connectors with USCAR 11 mm slot and provides strain relief for the connector and wiring assembly.
- Compact I-beam design provides a robust solution for all bundles, small to large.
- Dog bone ends help secure tape or tie, preventing bundling clip from slipping off bundle.
- Connector clip design meets USCAR EWCAP-005-11 clip slot specifications, assuring compliance.
- Meets installation and extraction requirements of SAE/USCAR-2, for easy insertion and reliable performance.
Show more
Show less
Request quote
| Application | Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly. |
| Colour | Black (BK) |
| Material | Polyacetal (POM) |
| PART DESCRIPTION | SOC25SO9CC11-POM-BK |
| Pack Content | 5000pcs. |
| Package Content packed in | pack |
| Type | SOC25SO9CC11 |
| UV-Stabilised | No |
| GTIN-13 / EAN | 4031026717593 |
| Packaging 1 - Qty | 5000 |
| Packaging 1 - Type | pack |
| Packaging 3 - Height (m) | 0.1730375m |
| Packaging 3 - Length (m) | 0.57785m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0349m³ |
| Packaging 3 - Weight (kg) | 9.03kg |
| Packaging 3 - Width (m) | 0.34925m |
| Packaging 4 - Qty | 180000 |
