31/08/2025

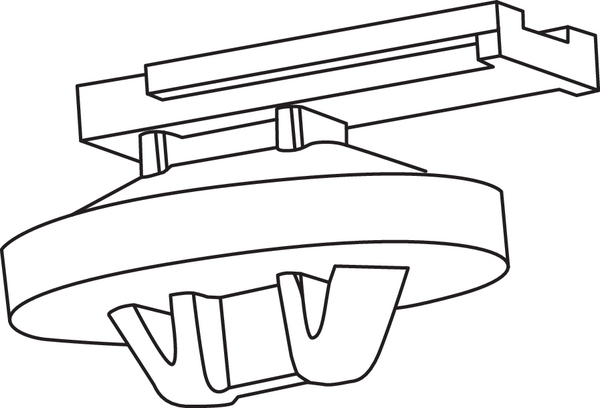

Connector clip for hole (oval), black, 500pcs.
Art.-No. 151-01272 | TCCSFT6.5X13PT0.6-2.0-MD-PA66HIRHS/EPDM-BK

Copied
  • Easy to install by simply pushing into place
    Connection can be released (non-destructive)
    One fit tree foot part can be used for a variety of panel thicknesses
    Disc covers the hole to prevent dust and dirt gaining access

Request your individual offer now

Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Ethylene Propylene Diene Terpolymer rubber free of Nitrosamine (EPDM)
PART DESCRIPTION TCCSFT6.5X13PT0.6-2.0-MD-PA66HIRHS/EPDM-BK
Pack Content 500pcs.
Package Content packed in bag
Product Family With Arrowhead
Product Group Connector Clips for Oval Holes, sealed
Type TCCSFT6.5X13PT0.6-2.0-MD
Height (H) 15.8mm
Length (L) 23.4mm
Width (W) 16.0mm
for Hole ⌀ (FH) 6.5 x 13.0 mm
for Panel Thickness min - max 0.6 - 2 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026482804
Packaging 3 - Height (m) 0.22m
Packaging 3 - Length (m) 0.57m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0495
Packaging 3 - Weight (kg) 1.62kg
Packaging 3 - Width (m) 0.395m
Packaging 4 - Height (m) 1.244m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.194
Packaging 4 - Weight (kg) 53.4kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 31162305
