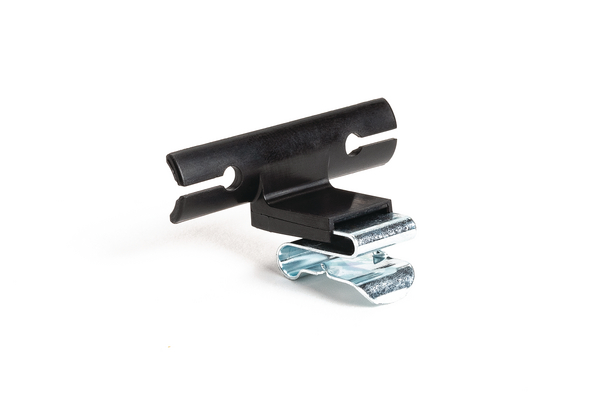

Bundling clip, L=36.2mm, SO=8.1mm, black, 4000pcs.
Art.-No. 133-04257 | TEC70-PA66HIRHSUV/MET-BK |

Copied
Tape clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Metal (MET)
    PART DESCRIPTION TEC70-PA66HIRHSUV/MET-BK
    Pack Content 4000pcs.
    Package Content packed in pack
    Product Family for panel thicknesses of 1.0 - 4.0 mm
    Product Group Bundling clips with edge clips
    Type TEC70
    UV-Stabilised Yes
    ⌀ D 0.16"
    Bundle ⌀ max. 7.8mm
    Bundling Bar Length 36.2mm
    Diameter (D) 4.0mm
    Height (H) 9.6mm
    Length (L) 15.5mm
    Length (L2) 36.2mm
    Offset Length 8.1mm
    Panel Thickness 0.06 - 0.08"
    Panel Thickness max. 1.6 - 2.0mm
    Panel Thickness max. (imperial) 0.08"
    Panel Thickness min. (imperial) 0.06"
    Width (W) 9.9mm
    Width (W2) 0.59"
    Width (W2) 15.1mm
    for Panel Thickness min - max 1.6 - 2 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026715025
    Packaging 1 - Qty 4000
    Packaging 1 - Type pack
    Packaging 3 - Height (m) 0.1730375m
    Packaging 3 - Length (m) 0.57785m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0349m³
    Packaging 3 - Width (m) 0.34925m
    UNSPSC Key 39121702
