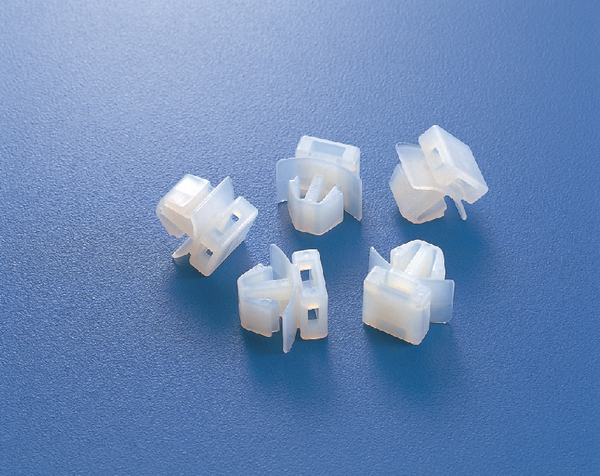

Cable tie mount for hole (round), Wmax=5.5mm, natural, 100pcs.


Art.-No. 151-00573

| CM2-PA66-NA

 |

Copied

    • Just push the mount on the rail groove.
    • Attatched easily just by inserting. Bolt and nuts are not required.
    • No need to open holes and tapping rails.
    • Number of units and parts are reduced, saving labor and costs.
    Add to watchlist
    Request quote
    Downloads
    Application Used in production line, automatic warehouse
    Colour Natural (NA)
    Fixation Method with Arrowhead / Push Mount (Mounts)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CM2-PA66-NA
    Pack Content 100pcs.
    Package Content packed in bag

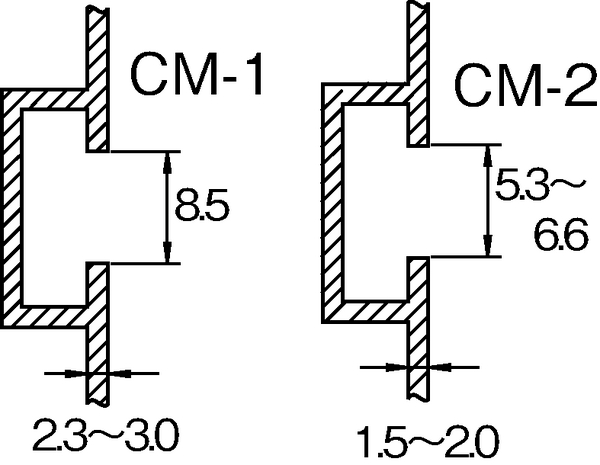

    Product Family CM-1, CM-2
    Product Group Push-mount for Conveyor
    Type CM2

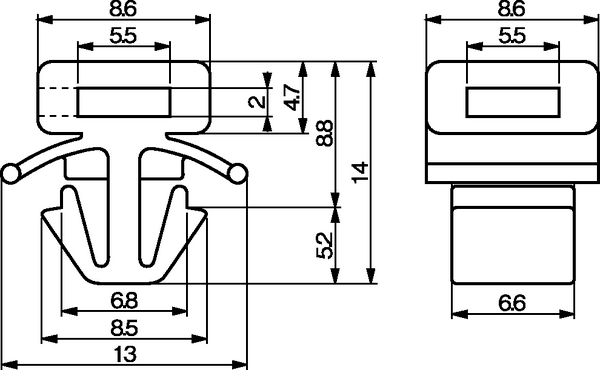

    Height (H) 14.0mm
    Length (L) 8.6mm
    Max. Tie Width (G) 5.5mm
    Width (W) 13.0mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4944387310900
    UNSPSC Key 39121717
