19/04/2024

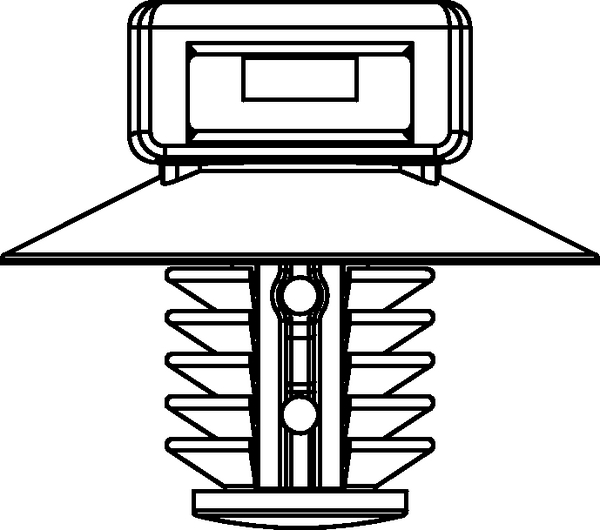

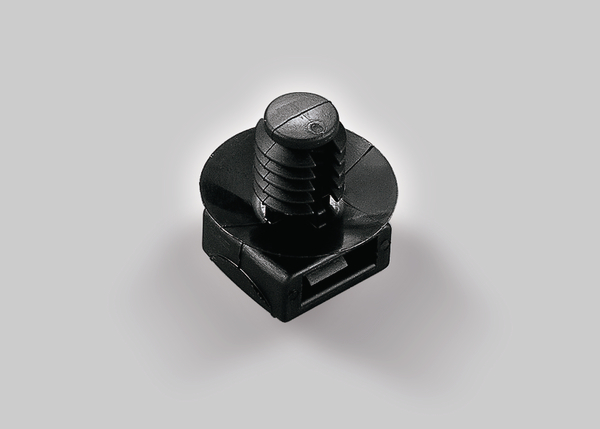

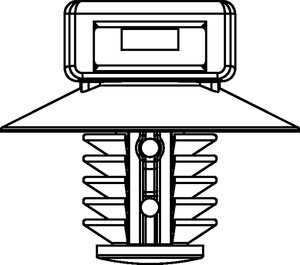

Cable tie mount for hole (round), T=1.3-4.5mm, Ø8.5 - 8.9 mm, black, 100pcs.
Art.-No. 151-02658 | FT9J-PA66HSW-BK |  Details

    • Supports a wide range of panel thickness in one size by the wiring fixture for the panel hole insertion which contributes to the reduction in the number of parts.
    • For the unique shape of the fir tree, it corresponds to a wide plate thickness in one size.
    • You can use both through hole, a female thread.
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Fixing on Panels. The dome type structure, prevent intrusion of dust, even after attaching to the panel.
    Application Tool ProCut 9 no battery, MK9P, MK9P w/ Upper air, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Black (BK)
    Fixation Method with Fir Tree (Mounts)
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    Pack Content 100pcs.
    Package Content packed in bag
    PART DESCRIPTION FT9J-PA66HSW-BK
    Product Family FT Series
    Product Group Fir tree mount
    Disc ∅ 21mm
    for Hole ∅ (FH) 8.5 - 8.9 mm
    for Panel Thickness min - max 1.3 - 4.5 mm
    Height (H) 18.5mm
    Length (L) 12mm
    Length (L2) 11mm
    Max. Tie Width (G) 7.9mm
    Panel Thickness max. 1.3-4.5mm
    Width (W) 12mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    Specifications
    GTIN-13 / EAN 4944387118810
    UNSPSC Key 39121717
