Cable tie mount, ⌀7.0 - 8.0 mm, black, 100pcs.


Art.-No. 151-80900

| LOK07-PA6HIR-BK

 |

Copied
LOK01, LOK01B, LOK01S fixing bases.
LOK05 fixing base (front view)
LOK01 fixing bases for indoor and outdoor use.

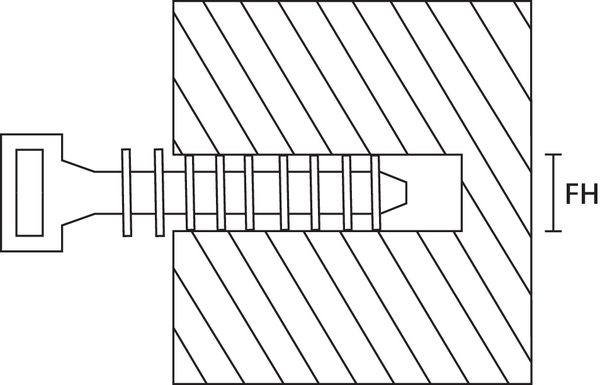

LOK01 pushed into a wall bore hole

    • LOK01 – LOK05 usable with any cable ties up to 9 mm wide
    • Suitable for a wide range of materials, including concrete, brick, block and wood
    • Installed by knocking into 7 mm or 8 mm diameter hole
    • LOK01B is designed for soft brickwork and 6 mm holes
    • Elongated head of LOK05 for setting bundles at a distance from brickwork
    Add to watchlist
    Downloads
    Application The LOK mounts, in conjunction with a cable tie, can be used either indoors or outdoors for a diverse range of applications from holding climbing plants, to securing cables running between buildings.
    Colour Black (BK)
    Fixation Method with Fir Tree (Mounts)
    Material Polyamide 6, high impact modified (PA6HIR)
    PART DESCRIPTION LOK07-PA6HIR-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family LOK-Series
    Product Group Fixing base
    Type LOK07
    Diameter (D) 9.2mm
    Disc ⌀ 12.0mm
    Length (L) 45.0mm
    Length (L2) 6.4mm
    for Hole ⌀ (FH) 7.0 - 8.0 mm
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 5022660330285
    UNSPSC Key 39121717
