25/10/2025

Cable tie mount for hole (round), Wmax=5.0mm, T=0.7-2.6mm, ⌀6.0 - 7.5 mm, natural, 100pcs.
Art.-No. 151-00574 | PM7-PA66-NA |

Copied

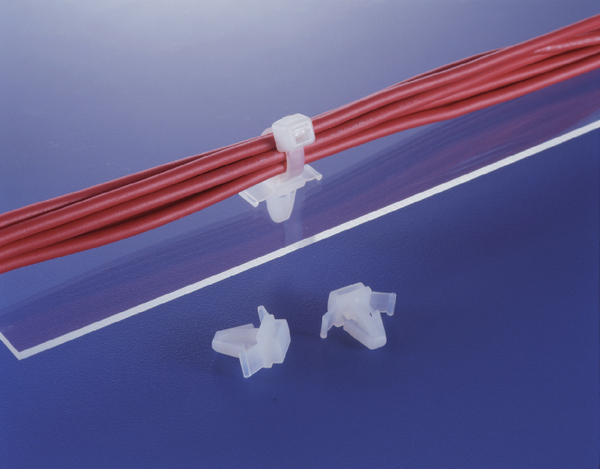

    • Wiring fixture that can be installed stably on the panel surface with the suport of the wings.
    • Can secure the wiring directly above the panel mounting hole.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Electrical and electronic equipment, Industrial and machine tools, Construction Machinery, Cable fixing on switchboards
    Colour Natural (NA)
    Fixation Method with Arrowhead / Push Mount (Mounts)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION PM7-PA66-NA
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family PM Series
    Product Group Push-mount arrowhead type
    Type PM7

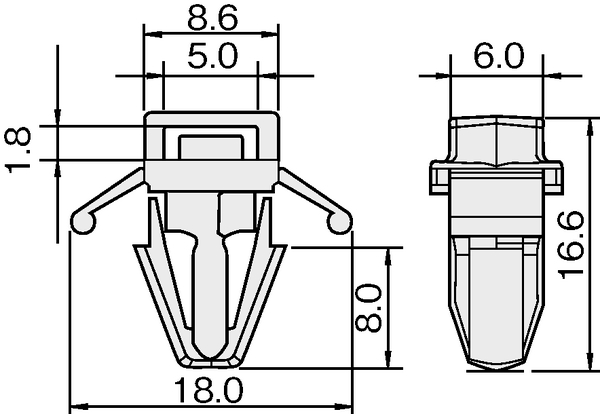

    Height (H) 16.6mm
    Length (L) 8.6mm
    Max. Tie Width (G) 5.0mm
    Panel Thickness max. 0.7-2.6mm
    Width (W) 18.0mm
    for Hole ⌀ (FH) 6.0 - 7.5 mm
    for Panel Thickness min - max 0.7 - 2.6 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4944387942811
    UNSPSC Key 39121717
