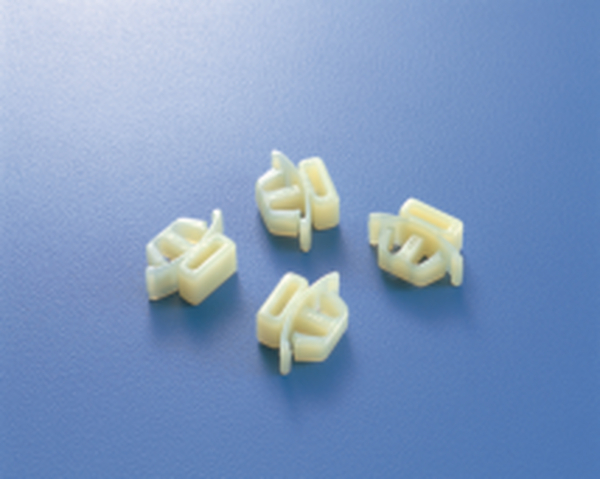

Cable tie mount for hole (oval), Wmax=7.8mm, natural, 100pcs.

Art.-No. 151-00576

| TDY1-PA66HS-NA

|

Secures direct wiring to the outside of the wiring duct in combination with tie.

Add to watchlist

Request quote

Downloads

More products in this product group:

Mounting for wiring ducts

Base Data

Application	To prevent noise generation, it is a cable fixing accessory used to wire the signal line outside of the duct.
Colour	Natural (NA)
Fixation Method	with Arrowhead / Push Mount (Mounts)
Material	Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION	TDY1-PA66HS-NA
Pack Content	100pcs.
Package Content packed in	bag
Product Family	TDY Series
Product Group	Mounting for wiring ducts
Strap Thickness max.	1.8
Type	TDY1

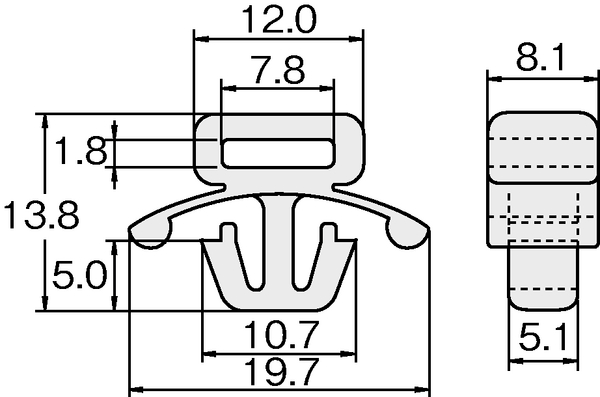

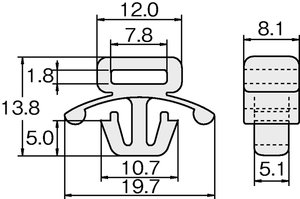

Product Dimensions

Height (H)	13.8mm
Length (L)	12mm
Max. Tie Width (G)	7.8mm
Wall (WT)	8mm
Wall (WT2)	2.0mm
Width (W)	19.7mm
Width (W2)	10.7mm

Specifications

Flammability	UL 94 V2
Operating Temperature	-40 °C to +110 °C
ROHS compliant	Yes
