Gel cable joint with connector : Reliseal V56

Gel cable joint 3x2,5 mm², 5x6 mm², green, Article number: 435-01660

Features

  • Moulding shell: one piece, re-openable, impact-proof, flame retardant
  • Perfect strain relief provided by patented cable gland system
  • Protection class IP68, 10 m
  • Filled with RELICON non-toxic gel, high dielectric strength
  • No mixing, easy to install
  • UV, ageing and weather resistant
  • Unlimited shelf life
  • With connector, ready to assembly
  • Tested according to EN 60529:1991

Certifications & Approvals

Application

Reliseal gel cable joints are suitable for cable connections under extreme conditions, outdoors and underground. They are universal straight-through joints with a protection class IP68 and consist of a solid polypropylene shell (PP) filled with RELICON gel. The system is tested according to EN 60529:1991. They can be used for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR, etc. Reliseal fulfils the highest requirements for electrical installations and offers mechanical protection, insulation and sealing in one work step. The installer saves time and requires no special installation tools.
Application: In low-voltage electrical networks as straight-through joint. In general connections in industrial buildings, underground, submerged, outdoor, indoor and in wiring ducts.

RELICON Reliseal is suitable for following markets and industries

Colour Green (GN)

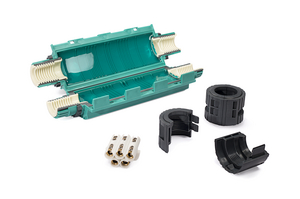

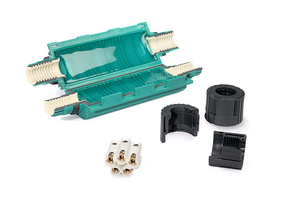

Content Gel shell filled with RELICON gel Screw system cable-gland for strain relief Reduce gaskets for various cable diameters Installation instruction Compression connector 3 x 2,5 mm² to 5 x 6 mm²
Pack Content 1pc.
Package Quantity per box
PART DESCRIPTION Reliseal V56-PP/SI-GN
Product Family RELICON Reliseal
Product Group Gel cable joint with connector
Conductor Cross Section Main Cable (max.) 5 x 6mm²
Conductor Cross Section Main Cable (min.) 3 x 2.5mm²
Height (H) 47mm
Length (L) 190mm
Width (W) 60mm
ELV compliant (Article 4 - 2) YES
Hazardous good No
Material Polypropylene (PP), Silicone (SI)
Material PP, SI
Operating Temperature - °C -20 °C to +90 °C
Shelf Life Unlimited
Specifications
Specifications EN 60529:1991
EAN / GTIN 4031026539898
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 1
Packaging 1 - Type pack
Packaging 1 - Volume (m³) 0.00138
Packaging 1 - Weight (kg) 0.36kg
Packaging 1 - Width (m) 0.115m
Packaging 3 - Height (m) 0.38m
Packaging 3 - Length (m) 0.42m
Packaging 3 - Qty 35
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0606
Packaging 3 - Weight (kg) 13.089kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.285m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 525
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.234
Packaging 4 - Weight (kg) 217.335kg
Packaging 4 - Width (m) 0.8m
Weight 0.36kg
UNSPSC Key 39121452
